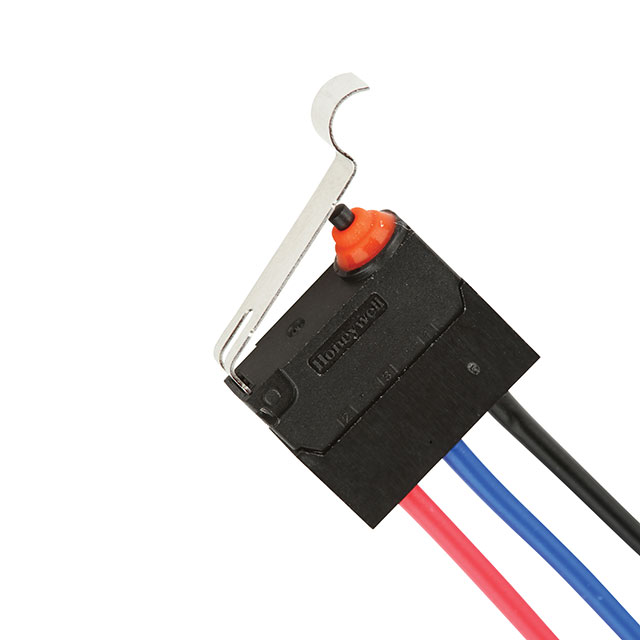

HD30 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACT SPST-NO 3A 125V
| Part | Voltage Rating - AC | Switch Function | Overtravel | Overtravel | Ingress Protection | Differential Travel | Differential Travel | Operating Temperature [Max] | Operating Temperature [Min] | Electrical Life | Pretravel | Pretravel | Operating Position | Operating Position | Termination Style | Release Force | Mechanical Life | Voltage Rating - DC | Actuator Type | Operating Force | Current Rating (Amps) | Mounting Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 125 V | Off-Mom | 1.8 mm | 0.07 in | IP67 - Dust Tight Waterproof | 0.6 mm | 0.025 in | 85 °C | -20 C | 10000 Cycles | 0.138 in | 3.5 mm | 6.8 mm | 0.268 " | Wire Leads | 25 gf | 500000 Cycles | 12 V | Lever Simulated Roller | 200 gf | 3 A | Chassis Mount | SPST-NO |
