10064555 Series

Catalog

CONN FPC TOP 39POS 0.3MM R/A

Part	Housing Color	Actuator Color	Current Rating (Amps)	Contact Finish Thickness	Mating Cycles	Voltage Rating	Pitch	Pitch	Cable End Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Material	Actuator Material	Contact Finish	Height Above Board	Height Above Board	Housing Material	FFC, FCB Thickness	Number of Positions	Mounting Type	Features	Locking Feature	Flat Flex Type	Connector/Contact Type	Termination	FFC, FCB Thickness [custom]	Number of Positions [custom]
Amphenol ICC (FCI) 10064555-392220HLF	Black	Black	0.2 A	Flash	10	30 VDC	0.012 in	0.3 mm	Straight	-55 C	85 °C	UL94 V-0	Copper Alloy	Thermoplastic Halogen Free	Gold	0.037 in	0.95 mm	Thermoplastic Halogen Free	0.3 mm	39	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	Slide Lock	FPC	Contacts Top	Solder
Amphenol ICC (FCI) 10064555-272520HLF	Black	Beige			10		0.012 in	0.3 mm					Copper Alloy	Thermoplastic Halogen Free				Thermoplastic Halogen Free		27	Right Angle Surface Mount		Flip Lock	FPC	Contacts Top	Solder	0.2 mm
Amphenol ICC (FCI) 10064555-332110ELF	Black	Black	0.2 A	Flash	10	30 VDC	0.012 in	0.3 mm	Straight	-55 C	85 °C	UL94 V-0	Copper Alloy	Thermoplastic	Gold	0.037 in	0.95 mm	Thermoplastic	0.3 mm		Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	Slide Lock	FPC	Contacts Top	Solder		33

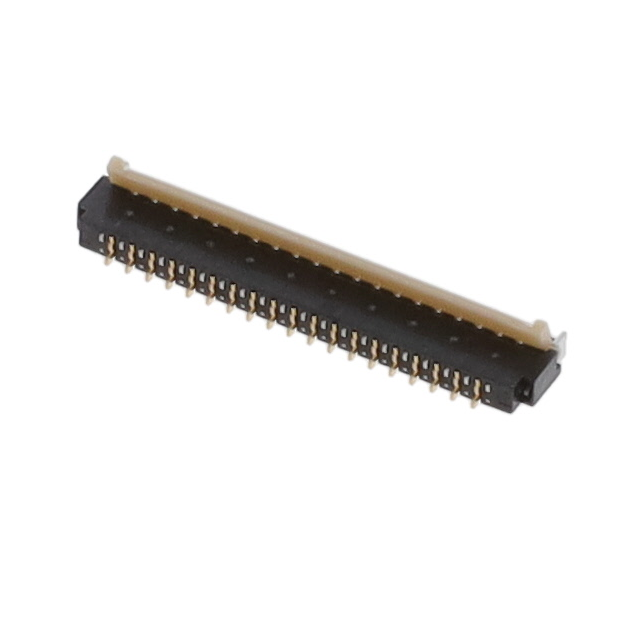

Amphenol ICC (FCI) 10064555-392210ELF	Black	Black	0.2 A	Flash	10	30 VDC	0.012 in	0.3 mm	Straight	-55 C	85 °C	UL94 V-0	Copper Alloy	Thermoplastic	Gold	0.037 in	0.95 mm	Thermoplastic	0.3 mm	39	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	Slide Lock	FPC	Contacts Top	Solder
Amphenol ICC (FCI) 10064555-332210ELF	Black	Black	0.2 A	Flash	10	30 VDC	0.012 in	0.3 mm	Straight	-55 C	85 °C	UL94 V-0	Copper Alloy	Thermoplastic	Gold	0.037 in	0.95 mm	Thermoplastic	0.3 mm		Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	Slide Lock	FPC	Contacts Top	Solder		33

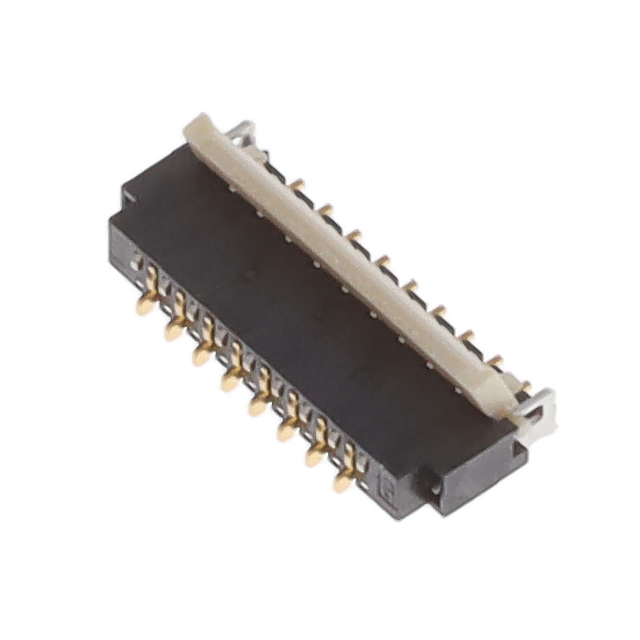

Amphenol ICC (FCI) 10064555-172520HLF	Black	Beige			10		0.012 in	0.3 mm					Copper Alloy	Thermoplastic Halogen Free				Thermoplastic Halogen Free			Right Angle Surface Mount		Flip Lock	FPC	Contacts Top	Solder	0.2 mm
Amphenol ICC (FCI) 10064555-232520HLF							0.012 in	0.3 mm												23	Right Angle Surface Mount		Flip Lock	FPC	Contacts Top	Solder	0.2 mm
