RA41G31 Series
Manufacturer: E-Switch
Beta
⌘K

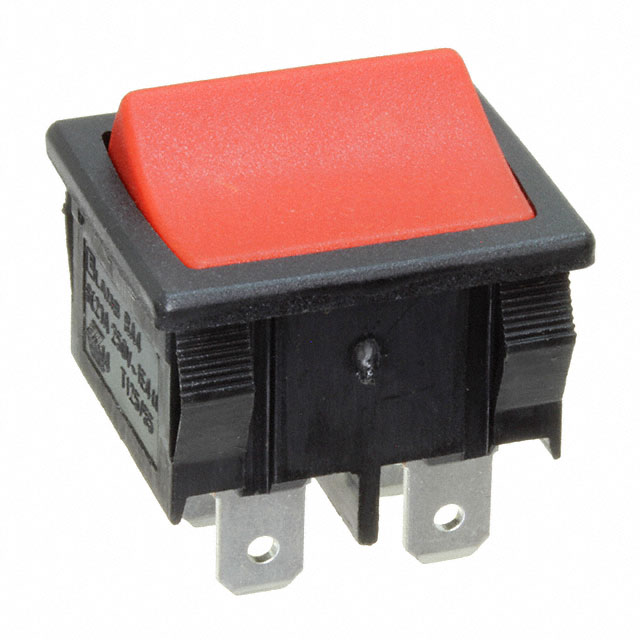

SWITCH ROCKER DPDT 10A 125V
| Part | Electrical Life | Circuit | Color - Actuator/Cap | Mounting Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Marking | Approval Agency | Actuator Type | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10000 Cycles | DPDT | Red | Panel Mount Snap-In | 19.2 mm | 22 mm | -20 ░C | 105 ░C | No Marking | cUL UL | Concave (Curved) | 10 A | 125 V | On-On | Quick Connect |
