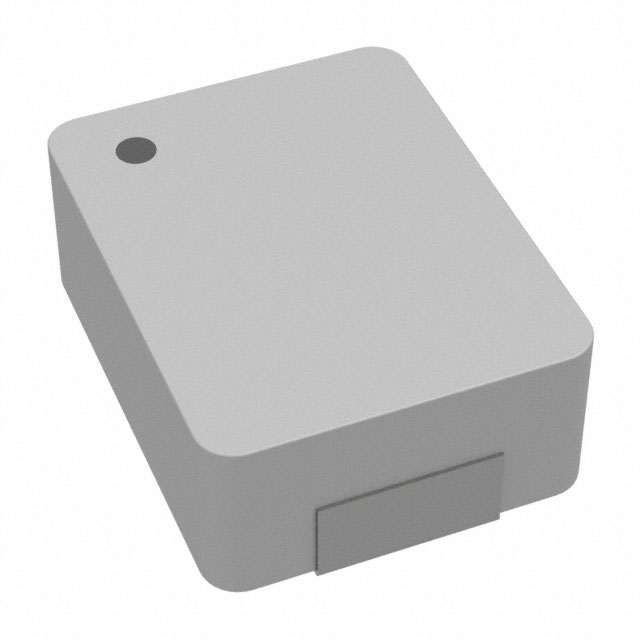

HMLQ32251 Series

Catalog

FIXED IND 4.7UH 1.7A 195 OHM SMD

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) [Max]	Tolerance	Package / Case	Package / Case	Mounting Type	Current Rating (Amps)	Supplier Device Package	Material - Core	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Shielding	Inductance Frequency - Test	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	Current - Saturation (Isat)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Delta Electronics/Cyntec HMLQ32251B-4R7MS	1.2 mm	0.047 "	195 mOhm	20 %	1210	3225 Metric	Surface Mount	1.7 A	1210	Metal	2.5 mm	0.098 in	3.2 mm	0.126 "	Shielded	100 kHz	-55 C	125 °C	4.7 ÁH	2.05 A
Delta Electronics/Cyntec HMLQ32251T-4R7MS			240 mOhm	20 %	1210	3225 Metric	Surface Mount	1.7 A	1210	Metal	2.5 mm	0.098 in	3.2 mm	0.126 "	Shielded	100 kHz	-55 C	125 °C	4.7 ÁH	1.8 A	0.039 in	1 mm
Delta Electronics/Cyntec HMLQ32251B-2R2MS	1.2 mm	0.047 "	85 mOhm	20 %	1210	3225 Metric	Surface Mount	3.2 A	1210	Metal	2.5 mm	0.098 in	3.2 mm	0.126 "	Shielded	100 kHz	-55 C	125 °C	2.2 µH	3.6 A
Delta Electronics/Cyntec HMLQ32251B-R47MS	1.2 mm	0.047 "	22 Ohm	20 %	1210	3225 Metric	Surface Mount	5.8 A	1210	Metal	2.5 mm	0.098 in	3.2 mm	0.126 "	Shielded	100 kHz	-55 C	125 °C	470 nH	7 A
