044914 Series

Manufacturer: Molex

Catalog

CONN POWER M 12 POS 3MM PRESS FIT ST THRU-HOLE 12 TERMINAL 1 PORT MICRO-FIT 3.0 CPI™ TRAY

Part	Connector Type	Contact Material	Features	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Applications	Mounting Type	Fastening Type	Termination	Number of Positions	Pitch - Mating	Pitch - Mating	Style	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Type	Contact Finish - Post	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating
Molex 0449141201	Header	Modified Tin/Brass Alloy	Board Guide	2	5.08 µm	200 µin	All	General Purpose Medical Military Telecommunications	Through Hole	Locking Ramp	Press-Fit Solder	12	0.118 in	3 mm	Board to Board Cable	Shrouded - 4 Wall	3 mm	0.118 in	UL94 V-0	9.91 mm	0.39 in	Male Pin	Tin	Black	3.18 mm	0.125 in	Square

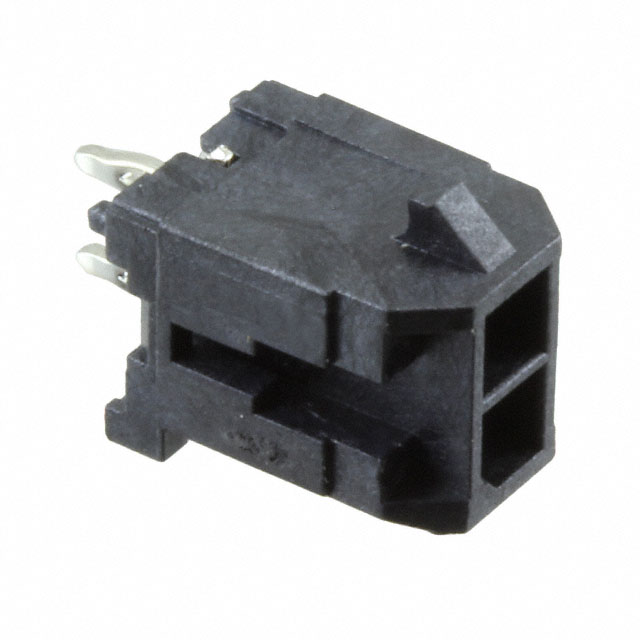

Molex 0449140201	Header	Modified Tin/Brass Alloy	Board Guide	2	5.08 µm	200 µin	All	General Purpose Medical Military Telecommunications	Through Hole	Locking Ramp	Press-Fit Solder	2			Board to Board Cable	Shrouded - 4 Wall	3 mm	0.118 in	UL94 V-0	9.91 mm	0.39 in	Male Pin	Tin	Black	3.18 mm	0.125 in	Square
Molex 0449146003	Header	Modified Tin/Brass Alloy	Board Guide	2	0.76 Ám	30 Áin	All	General Purpose Medical Military Telecommunications	Through Hole	Locking Ramp	Press-Fit Solder	10	0.118 in	3 mm	Board to Board Cable	Shrouded - 4 Wall	3 mm	0.118 in	UL94 V-0	9.91 mm	0.39 in	Male Pin	Tin	Black	3.18 mm	0.125 in	Square	2.54 µm	100 µin	Gold
Molex 0449146402	Header	Modified Tin/Brass Alloy	Board Guide	2	0.38 µm	15 µin	All	General Purpose Medical Military Telecommunications	Through Hole	Locking Ramp	Press-Fit Solder	14	0.118 in	3 mm	Board to Board Cable	Shrouded - 4 Wall	3 mm	0.118 in	UL94 V-0	9.91 mm	0.39 in	Male Pin	Tin	Black	3.18 mm	0.125 in	Square	2.54 µm	100 µin	Gold
Molex 0449145203	Header	Modified Tin/Brass Alloy	Board Guide	2	0.76 Ám	30 Áin	All	General Purpose Medical Military Telecommunications	Through Hole	Locking Ramp	Press-Fit Solder	2			Board to Board Cable	Shrouded - 4 Wall	3 mm	0.118 in	UL94 V-0	9.91 mm	0.39 in	Male Pin	Tin	Black	3.18 mm	0.125 in	Square	2.54 µm	100 µin	Gold
Molex 0449141003	Header	Modified Tin/Brass Alloy	Board Guide	2	0.76 Ám	30 Áin	All	General Purpose Medical Military Telecommunications	Through Hole	Locking Ramp	Press-Fit Solder	10	0.118 in	3 mm	Board to Board Cable	Shrouded - 4 Wall	3 mm	0.118 in	UL94 V-0	9.91 mm	0.39 in	Male Pin	Tin-Lead	Black	3.18 mm	0.125 in	Square	1.52 µm	60 µin	Gold
Molex 0449140602	Header	Modified Tin/Brass Alloy	Board Guide	2	0.38 µm	15 µin	All	General Purpose Medical Military Telecommunications	Through Hole	Locking Ramp	Press-Fit Solder	6	0.118 in	3 mm	Board to Board Cable	Shrouded - 4 Wall	3 mm	0.118 in	UL94 V-0	9.91 mm	0.39 in	Male Pin	Tin-Lead	Black	3.18 mm	0.125 in	Square	1.52 µm	60 µin	Gold
Molex 0449141801	Header	Modified Tin/Brass Alloy	Board Guide	2	5.08 µm	200 µin	All	General Purpose Medical Military Telecommunications	Through Hole	Locking Ramp	Press-Fit Solder	18	0.118 in	3 mm	Board to Board Cable	Shrouded - 4 Wall	3 mm	0.118 in	UL94 V-0	9.91 mm	0.39 in	Male Pin	Tin	Black	3.18 mm	0.125 in	Square

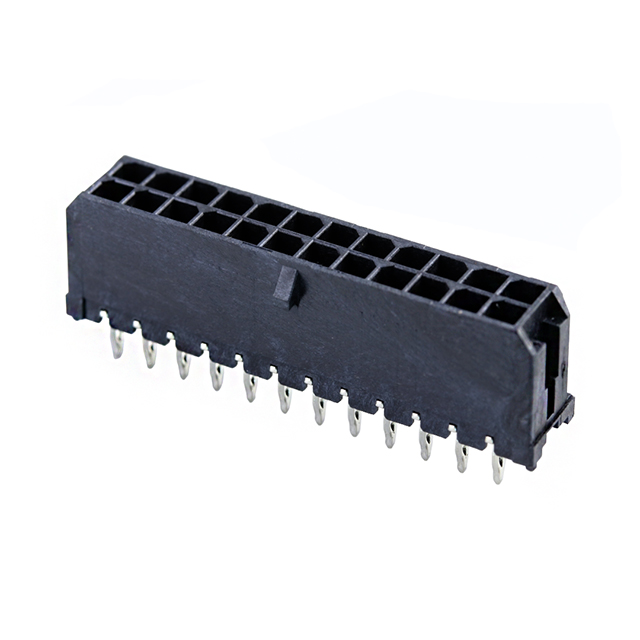

Molex 0449142401	Header	Modified Tin/Brass Alloy	Board Guide	2	5.08 µm	200 µin	All	General Purpose Medical Military Telecommunications	Through Hole	Locking Ramp	Press-Fit Solder	24	0.118 in	3 mm	Board to Board Cable	Shrouded - 4 Wall	3 mm	0.118 in	UL94 V-0	9.91 mm	0.39 in	Male Pin	Tin	Black	3.18 mm	0.125 in	Square
Molex 0449146202	Header	Modified Tin/Brass Alloy	Board Guide	2	0.38 µm	15 µin	All	General Purpose Medical Military Telecommunications	Through Hole	Locking Ramp	Press-Fit Solder	12	0.118 in	3 mm	Board to Board Cable	Shrouded - 4 Wall	3 mm	0.118 in	UL94 V-0	9.91 mm	0.39 in	Male Pin	Tin	Black	3.18 mm	0.125 in	Square	2.54 µm	100 µin	Gold
