324172 Series

Catalog

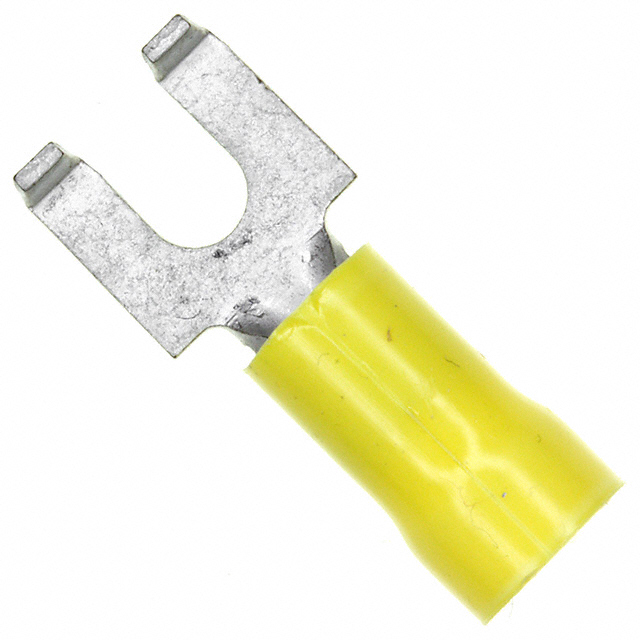

SPADE TONGUE TERMINAL 10-12AWG COPPER YELLOW 25.83MM TIN T/R

Part	Stud/Tab Size	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Features	Termination	Terminal Type	Length - Overall	Length - Overall [x]	Contact Finish	Material - Insulation	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Contact Material	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Color	Width - Outer Edges [x]	Width - Outer Edges	Length - Termination	Length - Termination	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation
TE Connectivity Raychem Cable Protection 1-324172-0	8 Stud	12 AWG	10 AWG	Free Hanging (In-Line)	Serrated Termination	Crimp	Flanged	26.85 mm	1.057 in	Tin	Poly-Vinyl Chloride (PVC)	0.25 in	6.35 mm	Copper	0.171 in	4.34 mm	Yellow	0.416 in	10.57 mm	0.591 in	15.01 mm	0.25 "	3.81 mm	0.15 "	6.35 mm	Insulated
