321878 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

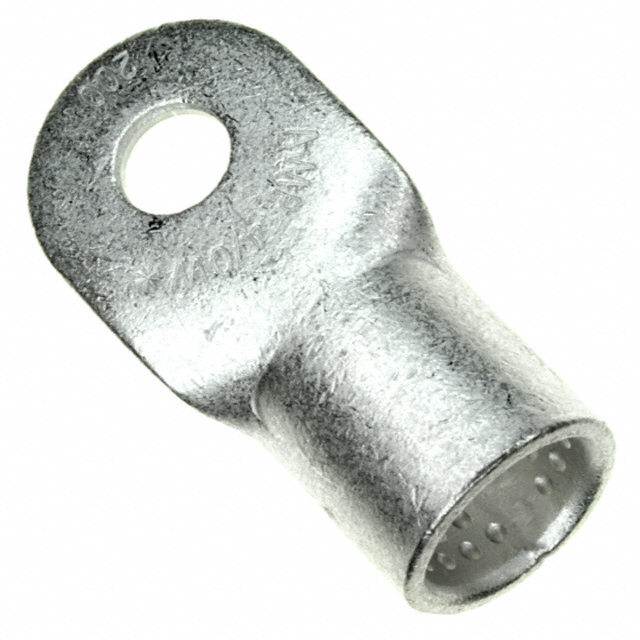

CONN RING CIRC 4/0AWG #3/8 CRIMP
| Part | Terminal Type | Features | Thickness | Thickness | Contact Finish | Termination | Width - Outer Edges [y] | Width - Outer Edges [y] | Length - Overall | Length - Overall [x] | Insulation | Mounting Type | Stud/Tab Size | Contact Material | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Circular | Brazed Seam Serrated Termination | 2.59 mm | 0.102 in | Tin | Crimp | 1.087 in | 27.61 mm | 55.32 mm | 2.178 in | Non-Insulated | Free Hanging (In-Line) | 3/8 Stud | Copper | 4 aught AWG |
