PM20C04V Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
PIN HEADER, SMT, DUAL ROW, 2.00
| Part | Fastening Type | Mounting Type | Contact Shape | Pitch - Mating | Pitch - Mating | Insulation Color | Contact Type | Number of Positions Loaded | Insulation Height [z] | Insulation Height [z] | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Connector Type | Number of Rows [custom] | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Shrouding | Contact Length - Mating | Contact Length - Mating | Termination | Contact Material | Contact Finish Thickness - Mating | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | Push-Pull | Surface Mount | Square | 0.079 " | 2 mm | Black | Male Pin | All | 2 mm | 0.079 in | 8 | 2 mm | 0.079 in | Header | 2 | Gold | -40 C | 105 ░C | Polyethylene | Unshrouded | 4 mm | 0.157 in | Solder | Copper Alloy | Flash | |

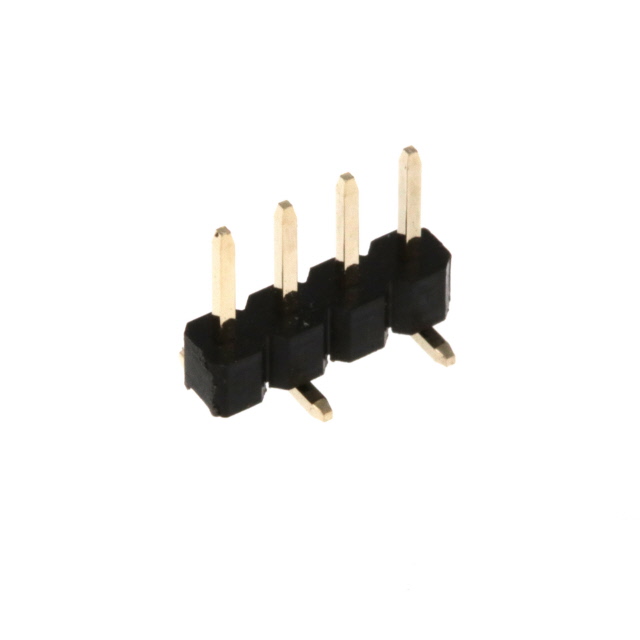

 METZ CONNECT USA Inc. | Push-Pull | Surface Mount | Square | 0.079 " | 2 mm | Black | Male Pin | All | 2 mm | 0.079 in | 4 | Header | Gold | -40 C | 105 ░C | Polyethylene | Unshrouded | 4 mm | 0.157 in | Solder | Copper Zinc | Flash | 1 |
