2400C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

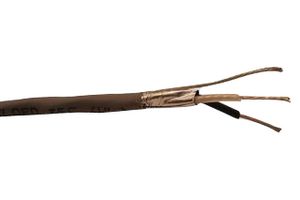

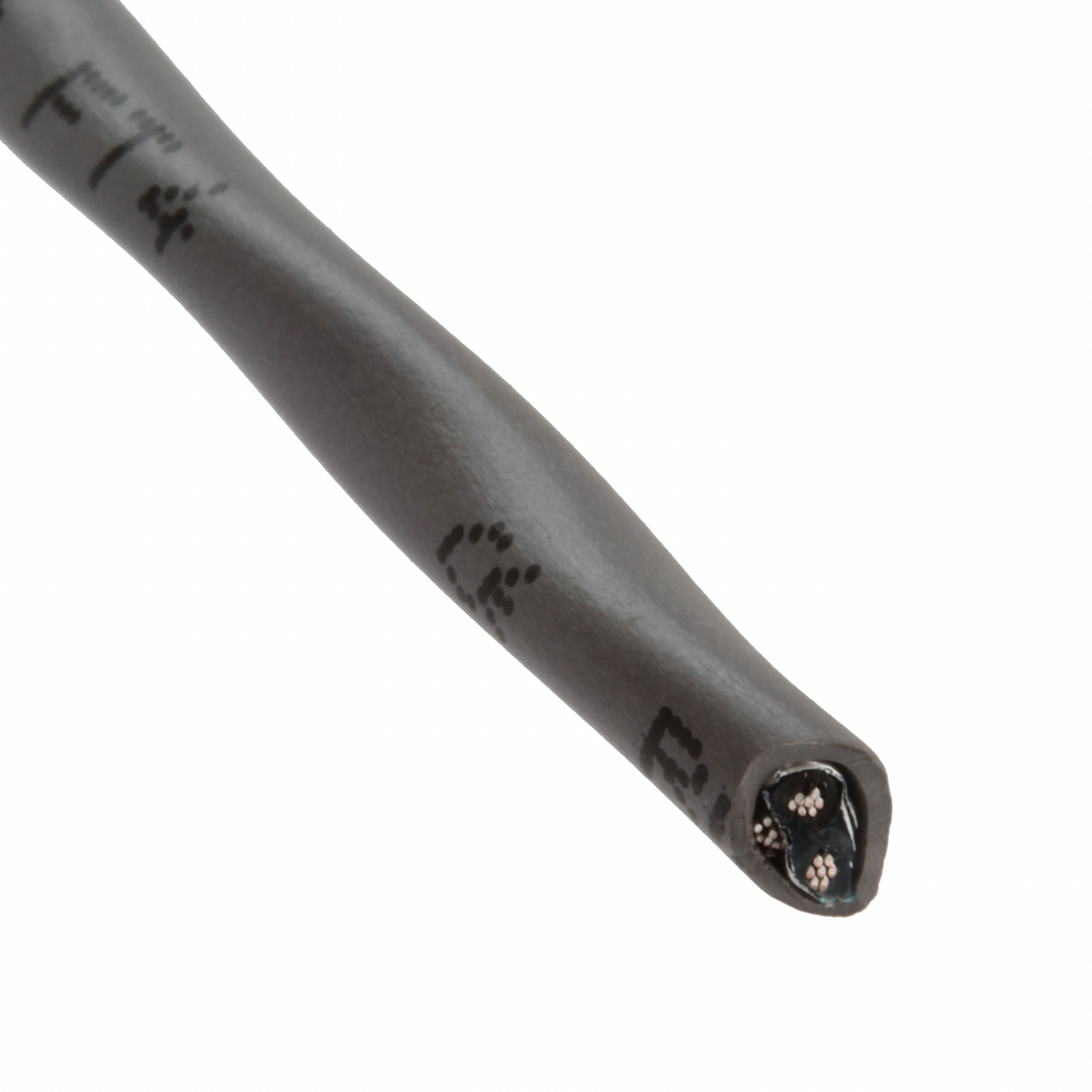

CABLE 2COND 24AWG SHLD
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Features | Jacket Color | Number of Conductors | Voltage | Jacket (Insulation) Material | Conductor Material | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Usage | Conductor Insulation | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 0.156 in | 3.96 mm | Drain Wire | Slate | 2 | 300 VDC | Poly-Vinyl Chloride (PVC) | Copper Tinned | Foil | 7 | 32 AWG | Multi-Conductor | 0.02 " | 0.508 mm | 24 AWG | Communication Control | Polyethylene (PE) | 304.8 m | 1000 ft | ||
 ALPHA WIRE | 100 % | Aluminum | 0.156 in | 3.96 mm | Drain Wire | Slate | 2 | 300 VDC | Poly-Vinyl Chloride (PVC) | Copper Tinned | Foil | 7 | 32 AWG | Multi-Conductor | 0.02 " | 0.508 mm | 24 AWG | Communication Control | Polyethylene (PE) | 100 ft | 30.5 m |
