047151 Series

Manufacturer: Molex

Catalog

CONN RCPT HDMI 19POS SMD R/A

Part	Connector Type	Insulation Color	Mounting Feature	Features	Number of Contacts [custom]	Shell/Shielding Material	Contact Finish	Shielding	Number of Ports	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Gender	Mounting Type	Termination	Material Flammability Rating

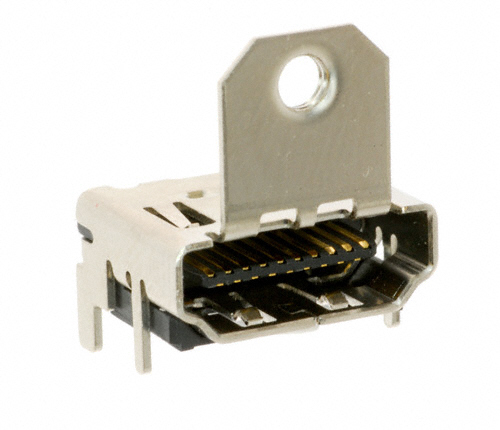

Molex 0471510002	HDMI	Black	Flange Horizontal	Detent Lock	19	Copper Alloy	Gold	Shielded	1	40 V	85 °C	-20 C	0.5 ADC	Receptacle	Surface Mount Right Angle Through Hole	Solder
Molex 0471511001	HDMI	Black	Horizontal	Detent Lock	19	Copper Alloy	Gold	Shielded	1	40 V	85 °C	-20 C	0.5 ADC	Receptacle	Surface Mount Right Angle Through Hole	Solder
Molex 0471511025	HDMI	Black	Flange Horizontal	Detent Lock	19	Copper Alloy	Gold	Shielded	1	40 V	85 °C	-20 C	0.5 ADC	Receptacle	Surface Mount Right Angle Through Hole	Solder
Molex 0471518051	HDMI	Black	Flange Horizontal		19	Copper Alloy	Gold	Shielded	1	40 V	85 °C	-20 C	0.5 ADC	Receptacle	Surface Mount Right Angle Through Hole	Solder	UL94 V-0
Molex 0471518001
Molex 0471511081	HDMI	Black	Horizontal	Detent Lock	19	Copper Alloy	Gold	Shielded	1	40 V	85 °C	-20 C	0.5 ADC	Receptacle	Surface Mount Right Angle Through Hole	Solder

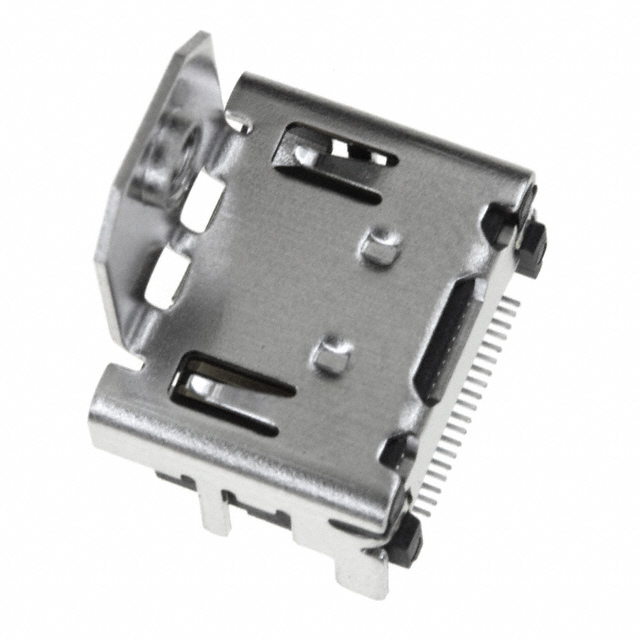

Molex 0471511002	HDMI	Black	Flange Horizontal	Detent Lock	19	Copper Alloy	Gold	Shielded	1	40 V	85 °C	-20 C	0.5 ADC	Receptacle	Surface Mount Right Angle Through Hole	Solder
Molex 0471516012	HDMI	Black	Flange Horizontal	Detent Lock	19	Copper Alloy	Gold	Shielded	1	40 V	85 °C	-20 C	0.5 ADC	Receptacle	Surface Mount Right Angle Through Hole	Solder
Molex 0471511042	HDMI	Black	Flange Horizontal	Detent Lock	19	Copper Alloy	Gold	Shielded	1	40 V	85 °C	-20 C	0.5 ADC	Receptacle	Surface Mount Right Angle Through Hole	Solder
Molex 0471510051
