NCP1337 Series
Manufacturer: ON Semiconductor
Beta
⌘K

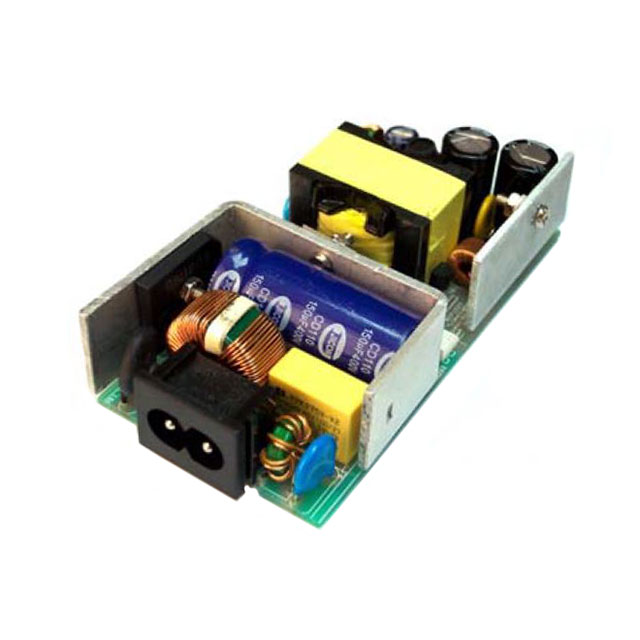

BOARD EVAL OFFLINE CTLR NCP1337A
| Part | Outputs and Type | Outputs and Type | Main Purpose | Frequency - Switching | Utilized IC / Part | Board Type | Supplied Contents | Voltage - Input [Min] | Voltage - Input [Max] | Regulator Topology | Voltage - Output | Power - Output | Current - Output | Operating Temperature [Max] | Operating Temperature [Min] | Internal Switch(s) | Output Isolation | Mounting Type | Package / Case [custom] | Package / Case | Package / Case [custom] | Package / Case | Fault Protection | Supplier Device Package | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Topology | Voltage - Start Up |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | Isolated | 1 | AC/DC Primary Side | 130 kHz | NCP1337 | Fully Populated | Board(s) | 90 VAC | 265 VAC | Flyback | 12 V | 60 W | 5 A | |||||||||||||||
ON Semiconductor | 130 kHz | 150 °C | -40 °C | Isolated | Surface Mount | 7 | 8-SOIC | 3.9 mm | 0.154 in | Current Limiting Over Temperature Over Voltage Short Circuit | 7-SOIC | 20 V | 10 V | Flyback | 12 V |
