895-063 Series
Manufacturer: EDAC Inc.
Beta
⌘K

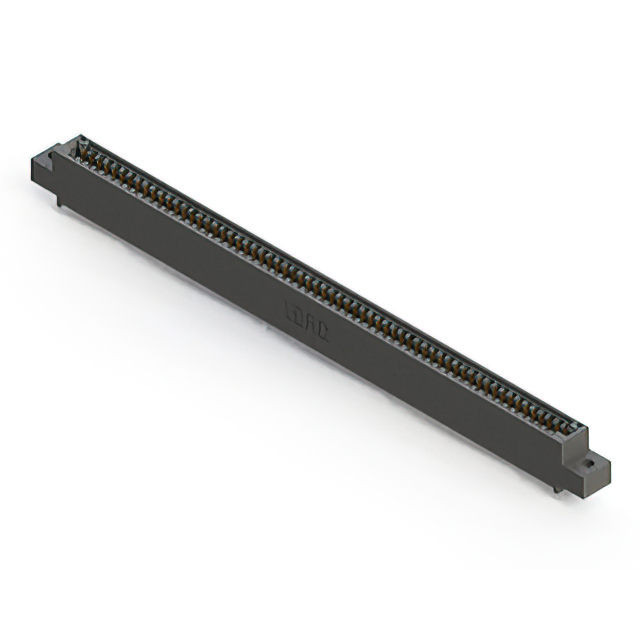

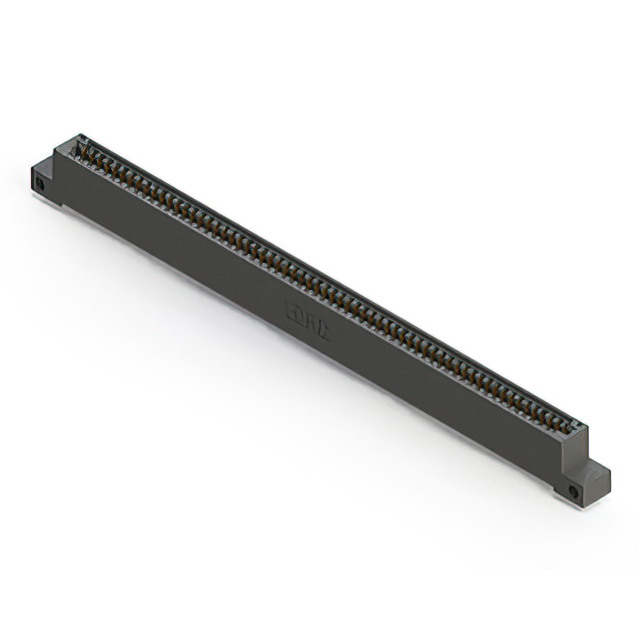

CONN EDGE SINGLE FML 63POS 0.100
| Part | Number of Rows | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Termination | Read Out | Material - Insulation | Color | Pitch | Pitch | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Contact Finish | Card Type | Mounting Type | Contact Material | Termination Rows | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Female | 125 °C | -40 C | 63 | Wire Wrap | Single | Polyphenylene Sulfide (PPS) | Black | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 63 | Gold | Non Specified - Single Edge | Through Hole | Copper Alloy | 1 | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Cantilever |
 EDAC Inc. | 1 | Female | 125 °C | -40 C | 63 | Wire Wrap | Single | Polyphenylene Sulfide (PPS) | Black | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 63 | Gold | Non Specified - Single Edge | Through Hole | Copper Alloy | 1 | M3 Threaded Insert Top Mount Opening | Cantilever | ||
 EDAC Inc. | 1 | Female | 125 °C | -40 C | 63 | Solder | Single | Polyphenylene Sulfide (PPS) | Black | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 63 | Gold | Non Specified - Single Edge | Through Hole | Copper Alloy | 1 | 0.128 " | 3.25 mm | Cantilever | |
 EDAC Inc. | 1 | Female | 125 °C | -40 C | 63 | Wire Wrap | Single | Polyphenylene Sulfide (PPS) | Black | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 63 | Gold | Non Specified - Single Edge | Through Hole | Copper Alloy | 1 | 0.156 " | 3.96 mm | Cantilever | |
 EDAC Inc. | 1 | Female | 125 °C | -40 C | 63 | Wire Wrap | Single | Polyphenylene Sulfide (PPS) | Black | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 63 | Gold | Non Specified - Single Edge | Through Hole | Copper Alloy | 1 | 4-40 Threaded Insert Top Mount Opening | Cantilever | ||
 EDAC Inc. | 1 | Female | 125 °C | -40 C | 63 | Solder | Single | Polyphenylene Sulfide (PPS) | Black | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 63 | Gold | Non Specified - Single Edge | Through Hole | Copper Alloy | 1 | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Cantilever |
 EDAC Inc. | 1 | Female | 125 °C | -40 C | 63 | Solder | Single | Polyphenylene Sulfide (PPS) | Black | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 63 | Gold | Non Specified - Single Edge | Through Hole | Copper Alloy | 1 | Flush Mount M3 Threaded Insert Top Opening | Cantilever | ||
 EDAC Inc. | 1 | Female | 125 °C | -40 C | 63 | Solder | Single | Polyphenylene Sulfide (PPS) | Black | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 63 | Gold | Non Specified - Single Edge | Through Hole | Copper Alloy | 1 | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Cantilever |
 EDAC Inc. | 1 | Female | 125 °C | -40 C | 63 | Wire Wrap | Single | Polyphenylene Sulfide (PPS) | Black | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 63 | Gold | Non Specified - Single Edge | Through Hole | Copper Alloy | 1 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Cantilever |
 EDAC Inc. | 1 | Female | 125 °C | -40 C | 63 | Solder | Single | Polyphenylene Sulfide (PPS) | Black | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 63 | Gold | Non Specified - Single Edge | Through Hole | Copper Alloy | 1 | M3 Threaded Insert Top Mount Opening | Cantilever |
