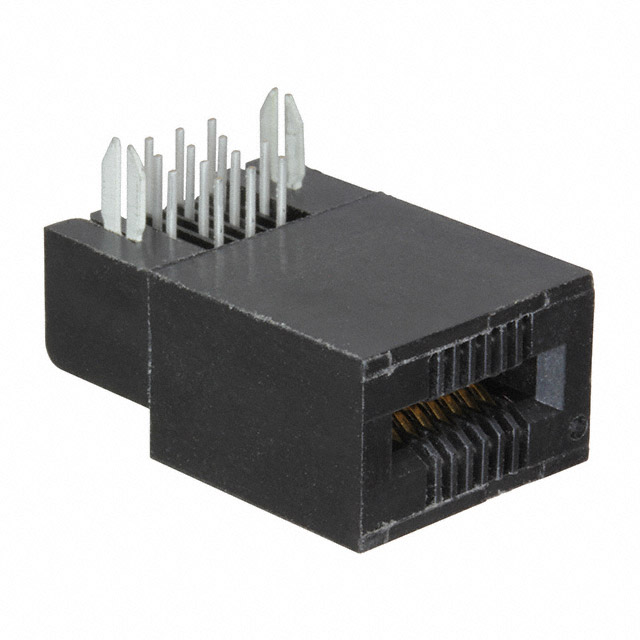

GCE07 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FMALE 14POS 0.039
| Part | Material - Insulation | Pitch | Pitch | Read Out | Number of Positions | Termination | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Features | Card Thickness | Card Thickness | Mounting Type | Gender | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Number of Positions/Bay/Row | Number of Rows [custom] | Contact Material | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polyamide (PA9T) Nylon 9T | 1 mm | 0.039 in | Dual | 14 | Solder Staggered | Gold | -65 ░C | 125 °C | Board Lock | 1.57 mm | 0.062 in | Right Angle Through Hole | Female | 30 Áin | 0.76 Ám | Hairpin Bellows | 7 | 2 | Phosphor Bronze | Non Specified - Dual Edge |
