2533-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

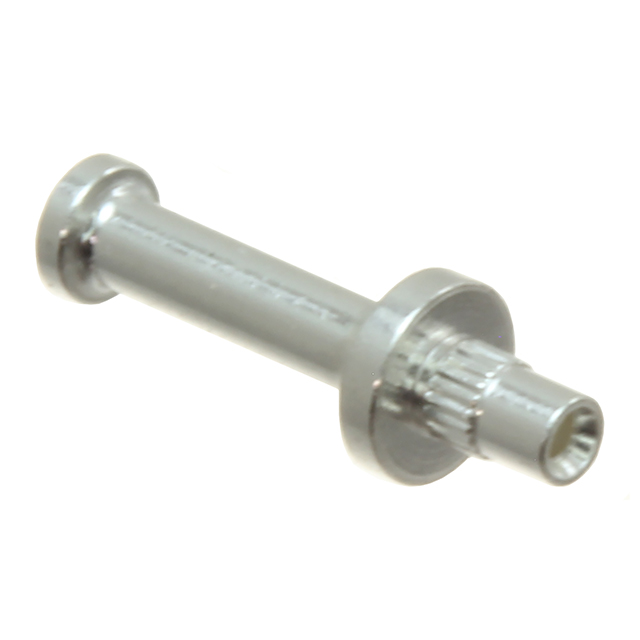

TERM TURRET SNG
| Part | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Board Thickness | Board Thickness | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Staking Side OD [diameter] | Staking Side OD [diameter] | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Staking Side ID [diameter] | Staking Side ID [diameter] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Insulation | Termination | Length - Overall [x] | Length - Overall [x] | Number of Turrets | Contact Material | Terminal Type | Mounting Type | Length - Above Board [x] | Length - Above Board [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | 1.32 mm | 0.052 in | 0.062 in | 1.57 mm | 2.82 mm | 0.111 in | 0.085 in | 2.16 mm | 1.24 mm | 0.049 in | 0.078 in | 1.98 mm | 0.66 mm | 0.026 in | 200 Áin | 5.08 Ám | Tin | Non-Insulated | Knurled Press-Fit Swage | 8.51 mm | 0.335 in | Single | Brass Alloy | Single End | Through Hole | 6.35 mm | 0.25 " |
 Mill-Max Manufacturing Corp. | 1.32 mm | 0.052 in | 0.062 in | 1.57 mm | 2.82 mm | 0.111 in | 0.085 in | 2.16 mm | 1.24 mm | 0.049 in | 0.078 in | 1.98 mm | 0.66 mm | 0.026 in | 300 µin | 7.62 µm | Silver | Non-Insulated | Knurled Press-Fit Swage | 8.51 mm | 0.335 in | Single | Brass Alloy | Single End | Through Hole | 6.35 mm | 0.25 " |
