IL254 Series

Catalog

SWITCH TOGGLE 4PDT 15A 125V

Part	Actuator Material	Electrical Life	Panel Cutout Dimensions [diameter]	Actuator Type	Current Rating (Amps)	Operating Temperature [Max]	Circuit	Actuator Length [x]	Mounting Type	Voltage Rating - AC	Illumination	Bushing Thread	Termination Style	Switch Function
Carling Technologies IL254-73/POLY	Brass Nickel Plated	50000 Cycles	12.7 mm	Standard Round	15 A	85 °C	4PDT	17.45 mm	Panel Mount	125 V	Non-Illuminated	15/32-32	Screw Terminal	On-On
Carling Technologies IL254-C8	Brass Nickel Plated	50000 Cycles	12.7 mm		15 A	85 °C	4PDT		Panel Mount	125 V	Non-Illuminated	15/32-32	Screw Terminal	On-On
Carling Technologies IL254-B8	Brass Nickel Plated	50000 Cycles	12.7 mm	Standard Round	15 A	85 °C	4PDT		Panel Mount	125 V	Non-Illuminated	15/32-32	Screw Terminal	On-On
Carling Technologies IL254-78	Brass Nickel Plated	50000 Cycles	12.7 mm	Standard Round	15 A	85 °C	4PDT	17.45 mm	Panel Mount	125 V	Non-Illuminated	15/32-32	Screw Terminal	On-On

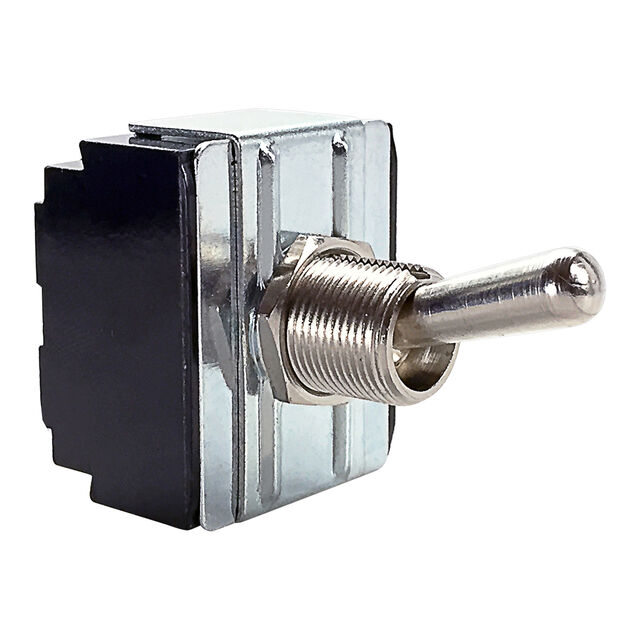

Carling Technologies IL254-73	Brass Nickel Plated	50000 Cycles	12.7 mm	Standard Round	15 A	85 °C	3PDT	17.45 mm	Panel Mount	125 V	Non-Illuminated	15/32-32	Screw Terminal	On-On
Carling Technologies IL254-63	Brass Nickel Plated	50000 Cycles	12.7 mm	Standard Round	15 A	85 °C	4PDT		Panel Mount	125 V	Non-Illuminated	15/32-32	Screw Terminal	On-On
Carling Technologies IL254-NBL8	Brass Nickel Plated	50000 Cycles	12.7 mm	Paddle	15 A	85 °C	4PDT	17.45 mm	Panel Mount	125 V	Non-Illuminated	15/32-32	Screw Terminal	On-On
Carling Technologies IL254-NBL3	Brass Nickel Plated	50000 Cycles	12.7 mm	Paddle	15 A	85 °C	4PDT	17.45 mm	Panel Mount	125 V	Non-Illuminated	15/32-32	Screw Terminal	On-On
