ZED-F9 Series
Manufacturer: u-blox
Catalog
MOD RF SENSOR FUSION GNSS RTK
| Part | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Applications | Data Interface | Data Rate (Max) | Frequency | Frequency | Operating Temperature (Min) | Operating Temperature (Max) | Package / Case | Package Name | Package Width | Package Length | Modulation or Protocol | Sensitivity | Mounting Type | Supplied Contents | For Use With/Related Products | Contents | Type | Utilized IC / Part | Frequency (Min) | Frequency (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

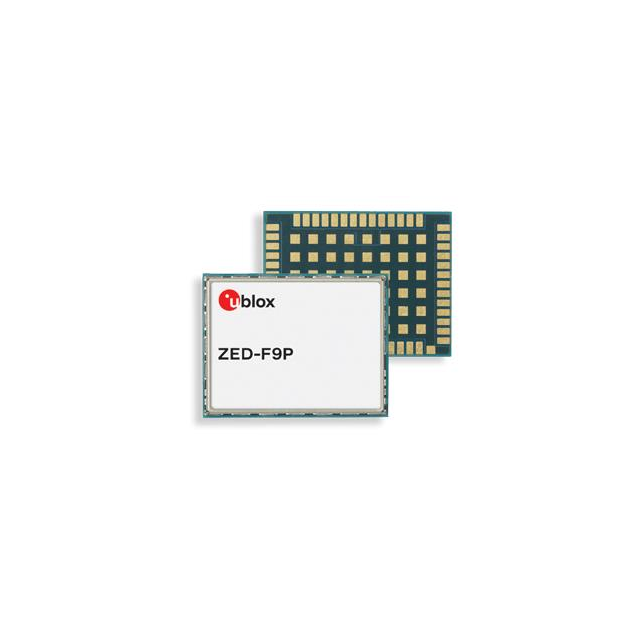

 u-blox | 3.6 V | 2.7 V | GPS | I2C SPI UART USB | 921.6 kbps | 1.207GHz 1.227GHz 1.246GHz 1.561GHz 1.575GHz 1.602GHz | 1.207 GHz 1.227 GHz 1.246 GHz 1.561 GHz 1.575 GHz 1.602 GHz | -40 °C | 85 °C | 54-SMD Module | 54-LGA | 17 mm | 22 mm | BeiDou Galileo GLONASS GNSS GPS | -160 dBm | Surface Mount | |||||||

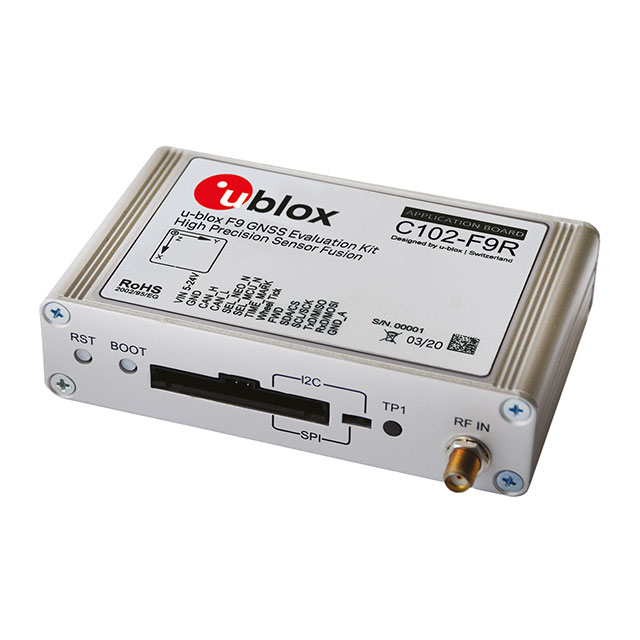

 u-blox | Accessories Board(s) Cable(s) | ZED-F9R | Accessories Board Cable | GNSS | ZED-F9R | ||||||||||||||||||

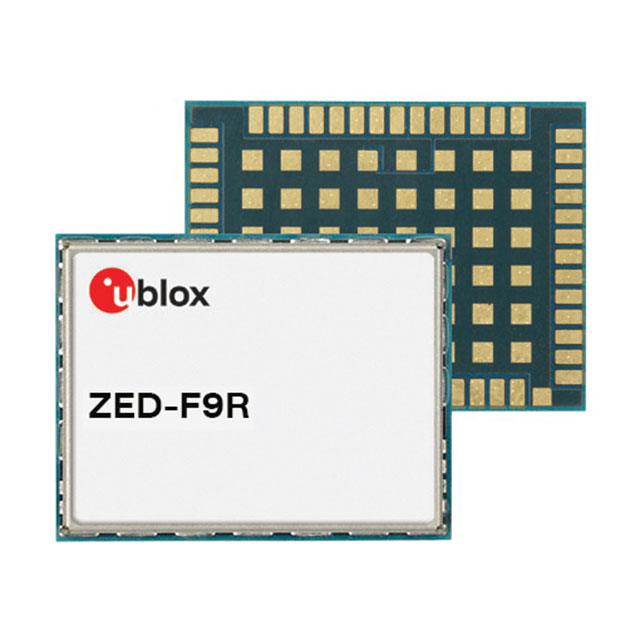

 u-blox | 3.6 V | 2.7 V | General Purpose | I2C SPI UART USB | 921.6 kbps | -40 °C | 85 °C | 54-SMD Module | 54-LGA | 17 mm | 22 mm | BeiDou Galileo GLONASS GNSS GPS | -167 dBm | Surface Mount | 1.2276 GHz | 1.575 GHz | |||||||
u-blox | 3.6 V | 2.7 V | GPS | I2C SPI UART USB | 921.6 kbps | 1.207GHz 1.227GHz 1.246GHz 1.561GHz 1.575GHz 1.602GHz | 1.207 GHz 1.227 GHz 1.246 GHz 1.561 GHz 1.575 GHz 1.602 GHz | -40 °C | 85 °C | 54-SMD Module | 54-LGA | 17 mm | 22 mm | BeiDou Galileo GLONASS GNSS GPS | -160 dBm | Surface Mount |
