CGS SM Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SURFACE MOUNT METAL FILM RESISTOR, SM SERIES, 0.51 OHM, 2 W, - 5%, 300 V, SMD

...

Part	Features	Composition	Height - Seated (Max) [Max]	Height - Seated (Max)	Package / Case	Number of Terminations [custom]	Supplier Device Package	Power (Watts)	Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

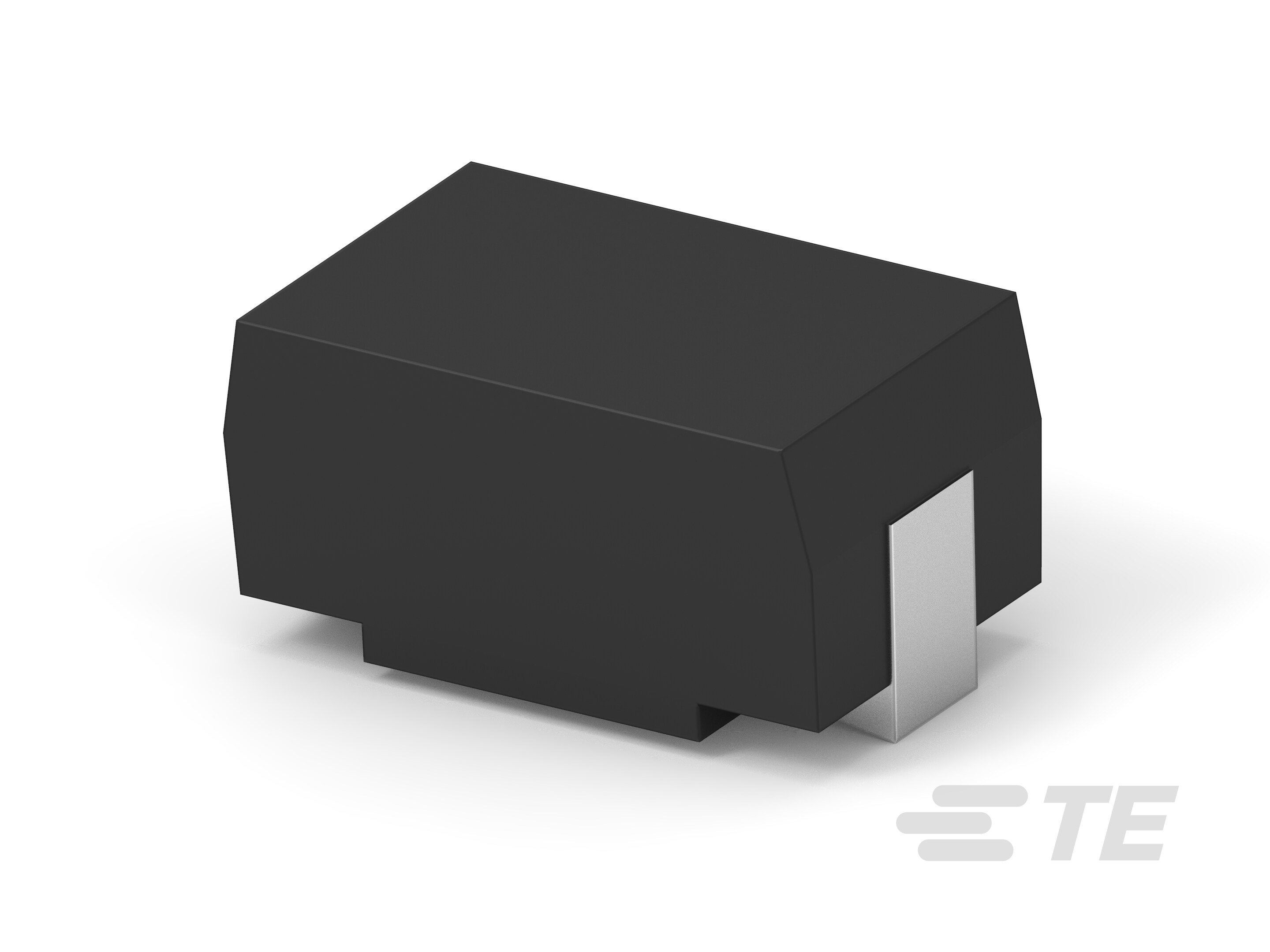

TE Connectivity AMP Connectors SMW2R51JT	Flame Retardant Coating Safety	Wirewound	0.152 in	3.85 mm	2616 (6740 Metric) J-Lead	2	SMD	2 W	510 mOhms	200 °C	-55 C	200 ppm/°C	5 %	0.157 "	4 mm	6.7 mm	0.264 in
TE Connectivity AMP Connectors SMF51K1JT	Flame Retardant Coating Safety	Metal Film	7.1 mm		5329 (13573 Metric) J-Lead	2	SMD	5 W	1100 Ohms	200 °C	-55 C	100 ppm/°C	5 %	0.287 in	7.3 mm	13.5 mm	0.531 in	0.28 in
TE Connectivity AMP Connectors SMF32K2JT	Flame Retardant Coating Safety	Metal Film			4122 J-Lead	2	SMD	3 W	2200 Ohms	200 °C	-55 C	100 ppm/°C	5 %	0.217 in	5.5 mm	10.5 mm	0.413 in		0.209 "	5.3 mm
TE Connectivity AMP Connectors SMW5240RJT	Flame Retardant Coating Safety	Wirewound	7.1 mm		5329 (13573 Metric) J-Lead	2	SMD	5 W	240 Ohms	200 °C	-55 C	200 ppm/°C	5 %	0.287 in	7.3 mm	13.5 mm	0.531 in	0.28 in
TE Connectivity AMP Connectors SMW347RJT	Flame Retardant Coating Safety	Wirewound			4122 J-Lead	2	SMD	3 W	47 Ohms	200 °C	-55 C	200 ppm/°C	5 %	0.217 in	5.5 mm	10.5 mm	0.413 in		0.209 "	5.3 mm
TE Connectivity AMP Connectors SMW215RJT	Flame Retardant Coating Safety	Wirewound	0.152 in	3.85 mm	2616 (6740 Metric) J-Lead	2	SMD	2 W	15 Ohms	200 °C	-55 C	200 ppm/°C	5 %	0.157 "	4 mm	6.7 mm	0.264 in
TE Connectivity AMP Connectors SMW52R0JT	Flame Retardant Coating Safety	Wirewound	7.1 mm		5329 (13573 Metric) J-Lead	2	SMD	5 W	2 Ohms	200 °C	-55 C	200 ppm/°C	5 %	0.287 in	7.3 mm	13.5 mm	0.531 in	0.28 in
TE Connectivity AMP Connectors SMF782KJT	Flame Retardant Coating Safety	Metal Film			Nonstandard	2	SMD	7 W	82 kOhms	200 °C	-55 C	100 ppm/°C	5 %	0.374 in	9.5 mm	23 mm	0.906 in
TE Connectivity AMP Connectors SMF710KJT	Flame Retardant Coating Safety	Metal Film			Nonstandard	2	SMD	7 W	10000 Ohms	200 °C	-55 C	100 ppm/°C	5 %	0.374 in	9.5 mm	23 mm	0.906 in
TE Connectivity AMP Connectors SMF52K2JT	Flame Retardant Coating Safety	Metal Film	7.1 mm		5329 (13573 Metric) J-Lead	2	SMD	5 W	2200 Ohms	200 °C	-55 C	100 ppm/°C	5 %	0.287 in	7.3 mm	13.5 mm	0.531 in	0.28 in
