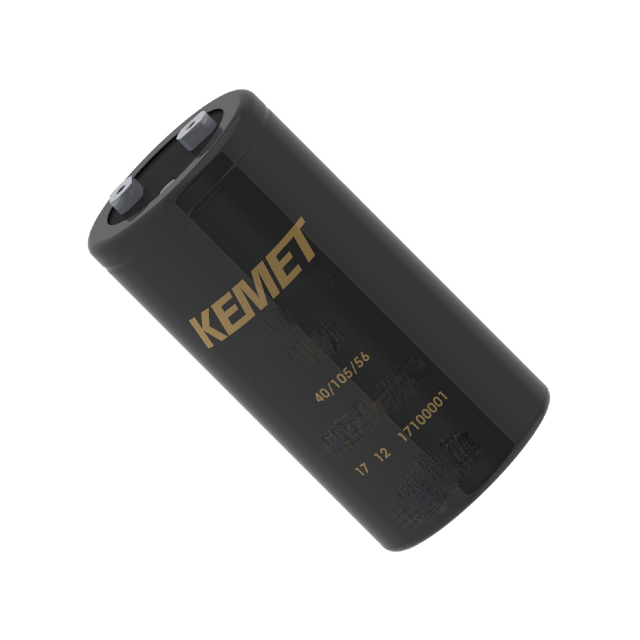

ALS70A Series

Manufacturer: KEMET

Catalog

Catalog

CAP ALUM 10000UF 20% 450V SCREW

...

Part	Voltage - Rated	Ripple Current @ Low Frequency	Capacitance	Applications	Ripple Current @ High Frequency	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Lead Spacing	Lead Spacing	Mounting Type	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Impedance	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ALS70A103QP450	450 V	22.1 A	10000 µF	General Purpose	31.1 A	85 °C	-40 C	23 mOhm	3.543 in	90 mm	Polar	1.252 in	31.8 mm	Chassis Mount	Radial Can - Screw Terminals	148 mm	5.827 in	20 %	16 mOhms	20000 Hrs
KEMET ALS70A473QS200	200 VDC	31.9 A	47 mF	General Purpose	37 A	85 °C	-40 C	11 mOhm	3.543 in	90 mm	Polar	1.252 in	31.8 mm	Chassis Mount	Radial Can - Screw Terminals			20 %	10 mOhms	20000 Hrs	7.717 in	196 mm
KEMET ALS70A273QW250	250 V	28 A	27 mF	General Purpose	35 A	85 °C	-40 C	14 mOhm	3.543 in	90 mm	Polar	1.252 in	31.8 mm	Chassis Mount	Radial Can - Screw Terminals	171 mm	6.732 in	20 %	11 mOhms	20000 Hrs
KEMET ALS70A223NP200	200 VDC	21.6 A	22000 µF	General Purpose	26.1 A	85 °C	-40 C	20 mOhm	3.031 in	77 mm	Polar	1.252 in	31.8 mm	Chassis Mount	Radial Can - Screw Terminals	148 mm	5.827 in	20 %	16 mOhms	20000 Hrs
KEMET ALS70A512MF400	400 V	14 A	5.1 mF	General Purpose	22.7 A	85 °C	-40 C	36 mOhm	2.598 in	66 mm	Polar	1.122 in	28.5 mm	Chassis Mount	Radial Can - Screw Terminals			20 %	22 mOhms	19000 Hrs	4.213 in	107 mm
KEMET ALS70A103QM400	400 V	21.1 A	10000 µF	General Purpose	29.8 A	85 °C	-40 C	22 mOhm	3.543 in	90 mm	Polar	1.252 in	31.8 mm	Chassis Mount	Radial Can - Screw Terminals			20 %	14 mOhms	20000 Hrs	5.236 "	133 mm
KEMET ALS70A562QW630	630 V	21.5 A	5.6 mF	General Purpose	33.3 A	85 °C	-40 C	30.69 mOhm	3.543 in	90 mm	Polar	1.252 in	31.8 mm	Chassis Mount	Radial Can - Screw Terminals	169 mm	6.654 in	20 %	21 mOhms	20000 Hrs
KEMET ALS70A114KF040	40 V	19.9 A	110000 µF	General Purpose	21.4 A	85 °C	-40 C	14 mOhm	2.008 in	51 mm	Polar	0.874 in	22.2 mm	Chassis Mount	Radial Can - Screw Terminals			20 %	13 mOhms	18000 Hrs	4.213 in	107 mm
KEMET ALS70A511DA400	400 V	3.1 A	510 µF	General Purpose	6.9 A	85 °C	-40 C	304 mOhm	1.417 in	36 mm	Polar	0.504 in	12.8 mm	Chassis Mount	Radial Can - Screw Terminals			20 %	172 mOhms	11000 Hrs	2.126 in	54 mm
KEMET ALS70A822QH400	400 V	18.4 A		General Purpose	26.4 A	85 °C	-40 C	26 mOhm	3.543 in	90 mm	Polar	1.252 in	31.8 mm	Chassis Mount	Radial Can - Screw Terminals			20 %	17 mOhms	20000 Hrs	3.937 in	100 mm
