R1411540 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

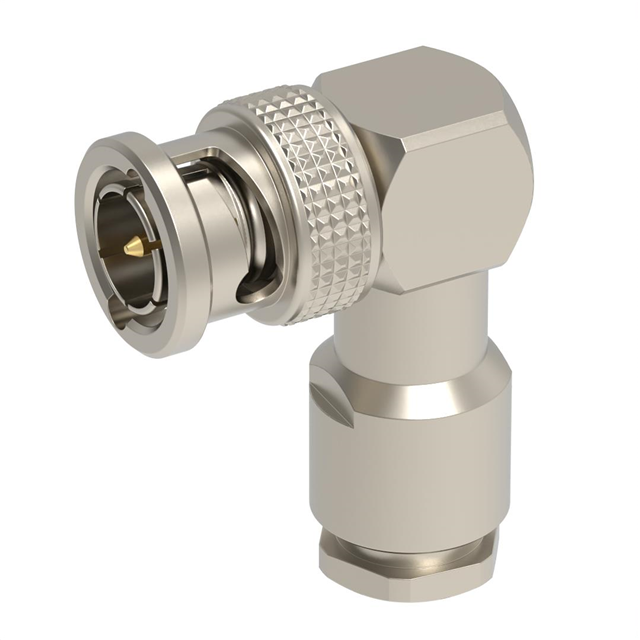

BNC M RA 2.6/50+75 C100
| Part | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mating Cycles | Center Contact Plating | Body Finish | Includes | Voltage Rating | Impedance | Connector Type | Fastening Type | Cable Group | Connector Style | Frequency - Max [Max] | Mounting Type | Housing Color | Number of Ports | Contact Termination | Shield Termination | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 | Gold | Nickel | 1 Braid Clamp 1 Clamp Nut 1 Connector 1 Contact 1 Gasket 1 Spacer | 500 V | 50 Ohms | Plug Male Pin | Bayonet Lock | RG-174 RG-179 RG-316 | BNC | 4 GHz | Free Hanging (In-Line) Right Angle | Silver | 1 | Crimp | Clamp | Beryllium Copper Brass |
