SIT5147 Series

Manufacturer: SiTime

Catalog

MEMS OSC TCXO 102.400000 MHZ LVC

Part	Package / Case	Output	Frequency Stability	Base Resonator	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Supply	Supplier Device Package	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Frequency	Current - Supply (Max) [Max]	Absolute Pull Range (APR)	Current - Supply (Disable) (Max) [Max]	Function

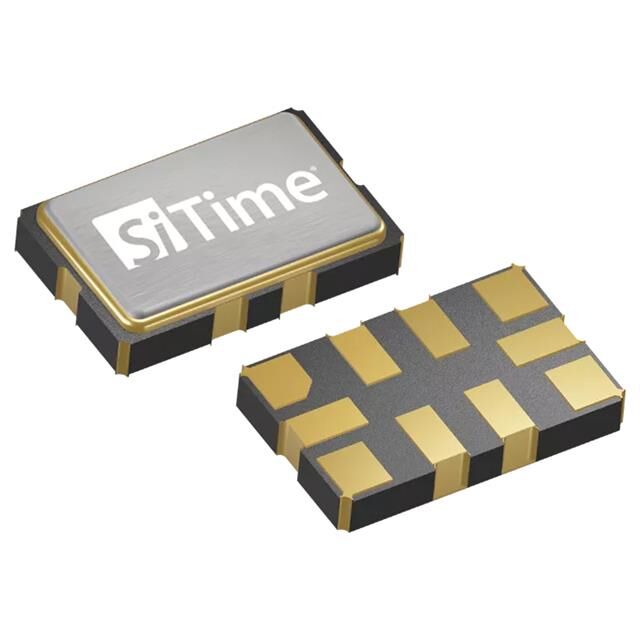

SiTime SIT5147AI-FK-33N0A102.400000	10-SMD No Lead	LVCMOS	500 ppb	MEMS	3.2 mm	0.126 in	5 mm	0.197 in	3.3 V	10-CQFN (5x3.2)	DCTCXO	1.06 mm	0.042 in	85 °C	-40 C	Surface Mount	102.4 MHz	62 mA
SiTime SIT5147AE-FK-33VTA160.000000	10-SMD No Lead	LVCMOS	500 ppb	MEMS	3.2 mm	0.126 in	5 mm	0.197 in	3.3 V	10-CQFN (5x3.2)	VCTCXO	1.06 mm	0.042 in	105 ░C	-40 C	Surface Mount	160 MHz	66 mA	2.75 ppm
SiTime SIT5147AE-FKG33IEB160.000000	10-SMD No Lead	LVCMOS	500 ppb	MEMS	3.2 mm	0.126 in	5 mm	0.197 in	3.3 V	10-CQFN (5x3.2)	DCTCXO	1.06 mm	0.042 in	105 ░C	-40 C	Surface Mount	160 MHz	62 mA	96.5 ppm	52 mA	Enable/Disable
SiTime SIT5147AE-FK-33E0B160.000000	10-SMD No Lead	LVCMOS	500 ppb	MEMS	3.2 mm	0.126 in	5 mm	0.197 in	3.3 V	10-CQFN (5x3.2)	TCXO	1.06 mm	0.042 in	105 ░C	-40 C	Surface Mount	160 MHz	62 mA		52 mA	Enable/Disable
SiTime SIT5147AE-FK-30E0B65.000000	10-SMD No Lead	LVCMOS	500 ppb	MEMS	3.2 mm	0.126 in	5 mm	0.197 in	3 V	10-CQFN (5x3.2)	TCXO	1.06 mm	0.042 in	105 ░C	-40 C	Surface Mount	65 MHz	62 mA		52 mA	Enable/Disable
