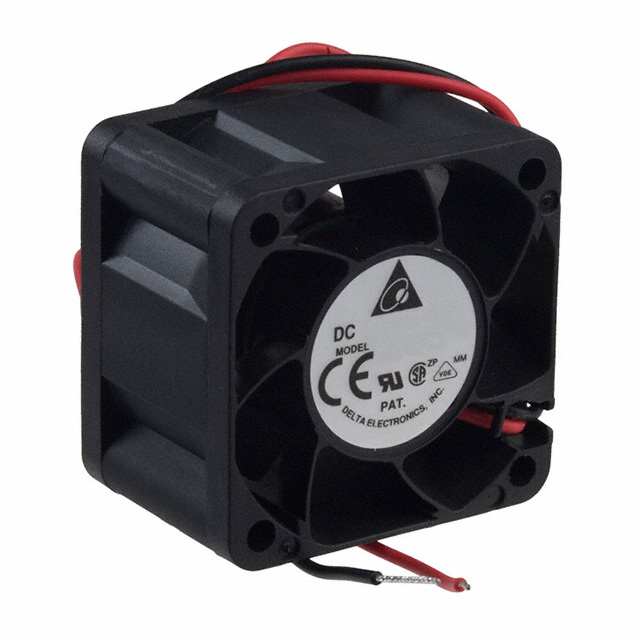

FFB03812 Series

Catalog

FAN AXIAL 38X28MM 12VDC WIRE

Part	Material - Frame	Material - Blade	Lifetime @ Temp.	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Approval Agency	Fan Type	Noise	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Bearing Type	Air Flow	Air Flow	Width [x]	Termination	RPM	Static Pressure	Static Pressure	Power (Watts)	Features	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated
Delta Electronics FFB03812VN-SPC	Plastic	Plastic	70000 Hrs	0.85 A	10.8 VDC	13.2 VDC	CE CSA UL VDE	Tubeaxial	62.5 dB	70 °C	-10 °C	48.08 g	0.106 lb	Ball	23 CFM	0.644 m³/min	28 mm	4 Wire Leads	23000 RPM	3.4 in H2O	846.9 Pa	10.2 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	38 mm	38 mm	12 VDC
Delta Electronics FFB03812VHN	Plastic	Plastic	40 °C 50000 Hrs	650 mA	7 V	13.2 VDC	CE CSA UL VDE	Tubeaxial	58.5 dB	60 °C	-10 °C	46.27 g	0.102 lb	Ball	20.2 CFM	0.566 m³/min	28 mm	2 Wire Leads	16000 RPM	1.463 in H2O	364.4 Pa	7.8 W		38 mm	38 mm	12 VDC

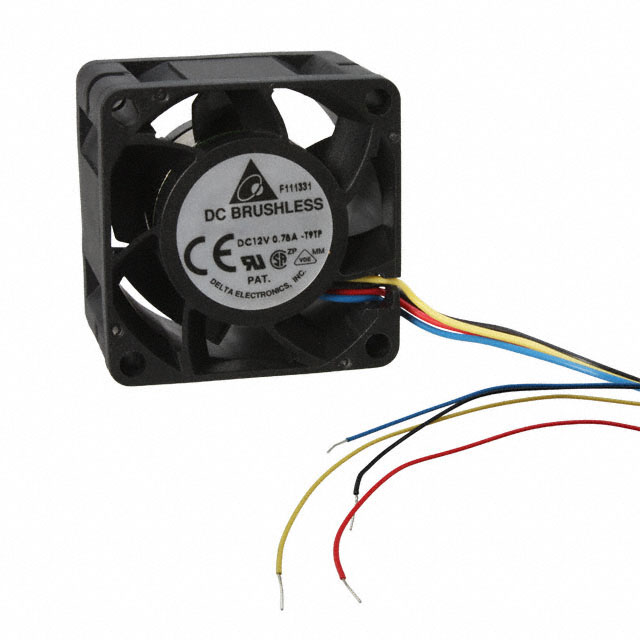

Delta Electronics FFB03812VHN-T9TP	Plastic	Plastic	40 °C 50000 Hrs	0.55 A	10.8 VDC	13.2 VDC	CE CSA UL VDE	Tubeaxial	58.5 dB	60 °C	-10 °C	46.27 g	0.102 lb	Ball	20.2 CFM	0.566 m³/min	28 mm	4 Wire Leads	16000 RPM	1.463 in H2O	364.4 Pa	6.6 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	38 mm	38 mm	12 VDC
Delta Electronics FFB03812LN	Plastic	Plastic	40 °C 50000 Hrs	0.2 A	7 V	13.8 VDC	CE CSA UL VDE	Tubeaxial	39 dB(A)	60 °C	-10 °C	46.27 g	0.102 lb	Ball	9.4 CFM	0.263 m³/min	28 mm	2 Wire Leads	8000 RPM	0.396 in H2O	98.6 Pa	2.4 W		38 mm	38 mm	12 VDC
Delta Electronics FFB03812VHN-9C3P	Plastic	Plastic	40 °C 50000 Hrs	0.55 A	10.8 VDC	13.2 VDC	CE CSA UL VDE	Tubeaxial	58.5 dB	60 °C	-10 °C	46.27 g	0.102 lb	Ball	20.2 CFM	0.566 m³/min	28 mm	4 Wire Leads	16000 RPM	1.463 in H2O	364.4 Pa	6.6 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	38 mm	38 mm	12 VDC
Delta Electronics FFB03812MN-F00	Plastic	Plastic	40 °C 50000 Hrs	0.25 A	7 V	13.8 VDC	CE CSA UL VDE	Tubeaxial	45 dB(A)	60 °C	-10 °C	46.27 g	0.102 lb	Ball	12.4 CFM	0.347 m³/min	28 mm	3 Wire Leads	10000 RPM	0.566 in H2O	141 Pa	3 W	Locked Rotor Protection Speed Sensor (Tach)	38 mm	38 mm	12 VDC
Delta Electronics FFB03812VHN-F00	Plastic	Plastic	40 °C 50000 Hrs	650 mA	7 V	13.2 VDC	CE CSA UL VDE	Tubeaxial	58.5 dB	60 °C	-10 °C	46.27 g	0.102 lb	Ball	20.2 CFM	0.566 m³/min	28 mm	3 Wire Leads	16000 RPM	1.463 in H2O	364.4 Pa	7.8 W	Locked Rotor Protection Speed Sensor (Tach)	38 mm	38 mm	12 VDC
Delta Electronics FFB03812VHN-R00	Plastic	Plastic	40 °C 50000 Hrs	650 mA	7 V	13.2 VDC	CE CSA UL VDE	Tubeaxial	58.5 dB	60 °C	-10 °C	46.27 g	0.102 lb	Ball	20.2 CFM	0.566 m³/min	28 mm	3 Wire Leads	16000 RPM	1.463 in H2O	364.4 Pa	7.8 W	Locked Rotor Sensor	38 mm	38 mm	12 VDC
