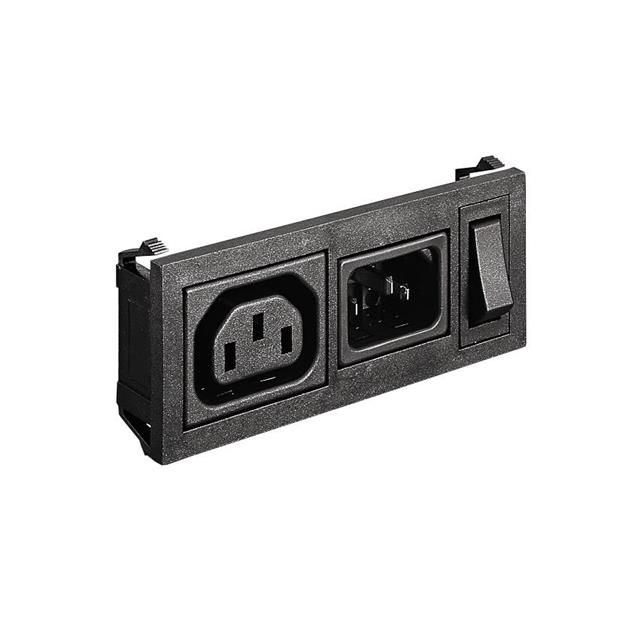

BZH09/Z Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
PWR ENT IN/OUT IEC320-2-2F PNL
| Part | Filter Type | Material Flammability Rating | Voltage Rating - Appliance Inlet | Accomodates a Fuse | Approval Agency | Connector Type | Current Rating - Appliance Inlet | Mounting Type | Panel Thickness [Max] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Min] | Termination | Termination | Termination | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Switch Features | Number of Positions | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Unfiltered - Commercial | UL94 V-0 | 250 VAC | CSA ENEC UL VDE | Receptacle Female Sockets Receptacle Male Blades | 10 A | Panel Mount Snap-In | 0.118 in | 3 mm | 1 mm | 0.039 in | 6.3 mm | Quick Connect | 0.25 " | 93.5 mm | 34.4 mm | Switch On-Off | 3 | IEC 320-2-2/F IEC 320-C14 |
