A10WCM-P Series
Manufacturer: ODU
Beta
⌘K

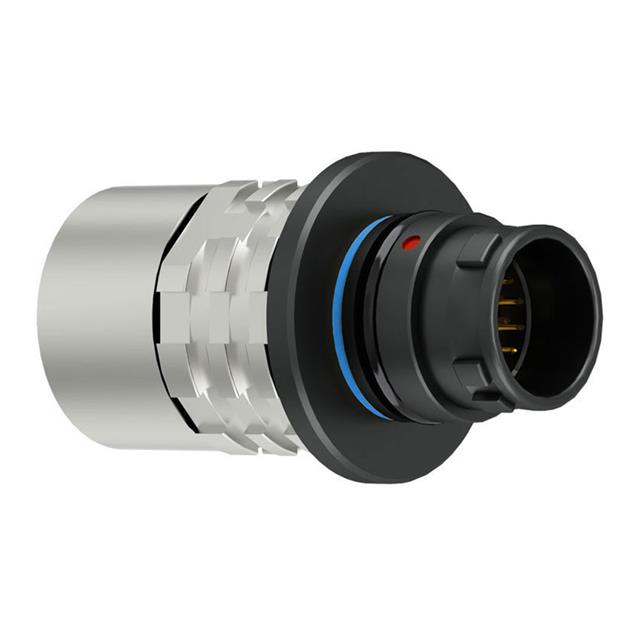

ODU AMC HD PLUG, STY 1, SZ 0, SE
| Part | Applications | Contact Material | Backshell Material, Plating | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Shell Size - Insert [custom] | Current Rating (Amps) | Primary Material | Orientation | Mounting Type | Color | Ingress Protection | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Shielding | Shell Material | Fastening Type | Number of Positions [custom] | Number of Positions [custom] | Cable Opening | Cable Opening | Connector Type | Contact Finish - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Industrial Medical Military | Copper Alloy | Brass Ruthenium over Electroless Nickel | Polyetheretherketone (PEEK) | 50 µin | 1.27 µm | Backshell | 0 | 1 A 5 A | Metal | C | Free Hanging (In-Line) | Black Silver | IP68 - Dust Tight Waterproof | UL94 V-0 | -51 °C | 125 °C | Ruthenium over Electroless Nickel | Shielded | Brass | Detent Lock Push-Pull | 2 | 10 | 0.276 in | 7 mm | Plug Male Pins | Gold | ||
Industrial Medical Military | Copper Alloy | Brass Ruthenium over Electroless Nickel | Polyetheretherketone (PEEK) | 50 µin | 1.27 µm | Backshell | 0 | 1 A 5 A | Metal | C | Free Hanging (In-Line) | Black Silver | IP68 - Dust Tight Waterproof | UL94 V-0 | -51 °C | 125 °C | Ruthenium over Electroless Nickel | Shielded | Brass | Detent Lock Push-Pull | 0.276 in | 7 mm | Plug Male Pins | Gold | 9 | |||
Industrial Medical Military | Copper Alloy | Brass Ruthenium over Electroless Nickel | Polyetheretherketone (PEEK) | 50 µin | 1.27 µm | Backshell | 0 | Metal | C | Free Hanging (In-Line) | Black Silver | IP68 - Dust Tight Waterproof | UL94 V-0 | -51 °C | 125 °C | Ruthenium over Electroless Nickel | Shielded | Brass | Detent Lock Push-Pull | 0.276 in | 7 mm | Plug Male Pins | Gold | 16 |
