UST-5 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 2:1, 2.5 W, 1 OUTPUT, 5 V

Part	Applications	Power (Watts)	Voltage - Input (Max) [Max]	Mounting Type	Package / Case	Efficiency	Current - Output (Max) [Max]	Type	Number of Outputs	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Voltage - Output 1
Murata Electronics UST-5/500-D12-C	ITE (Commercial)	3 W	18 V	Through Hole	8-DIP Module	74 %	500 mA	Isolated Module	1	1000 V	-40 C	75 ░C	0.45 in	0.8 "	1.25 in	31.8 mm	20.3 mm	11.4 mm	9 V	5 V

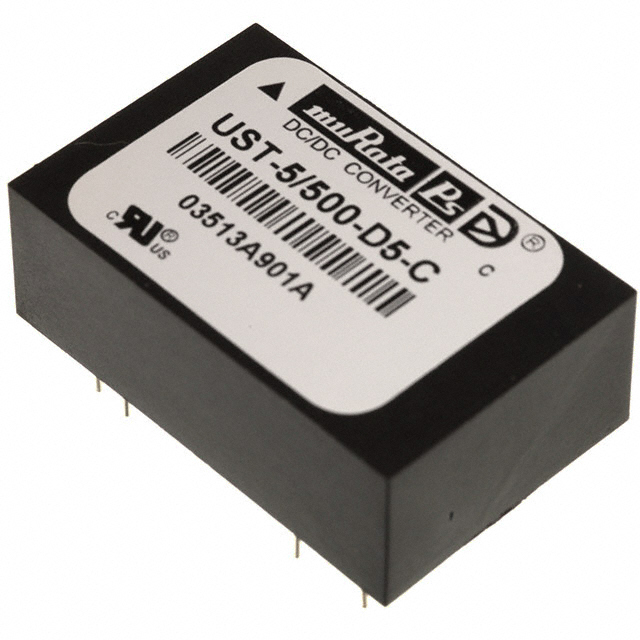

Murata Electronics UST-5/500-D5-C	ITE (Commercial)	3 W	9 V	Through Hole	8-DIP Module	74 %	500 mA	Isolated Module	1	1000 V	-40 C	75 ░C	0.45 in	0.8 "	1.25 in	31.8 mm	20.3 mm	11.4 mm	4.5 V	5 V

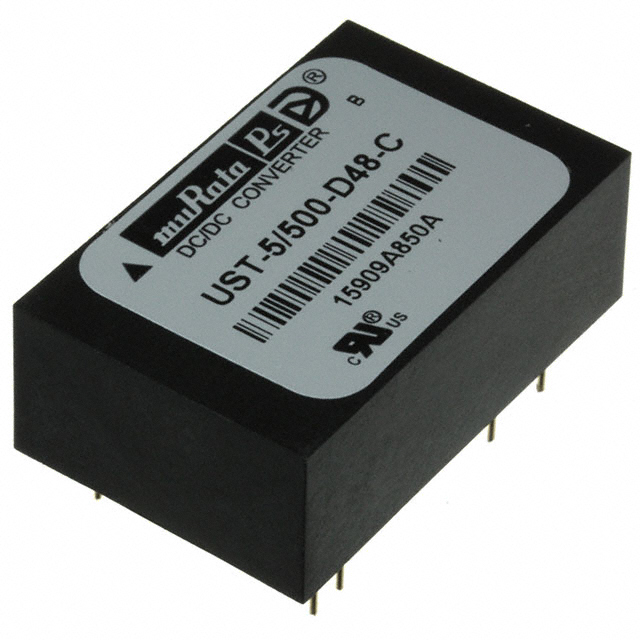

Murata Electronics UST-5/500-D48-C	ITE (Commercial)	3 W	72 V	Through Hole	8-DIP Module	75 %	500 mA	Isolated Module	1	1000 V	-40 C	75 ░C	0.45 in	0.8 "	1.25 in	31.8 mm	20.3 mm	11.4 mm	18 V	5 V
