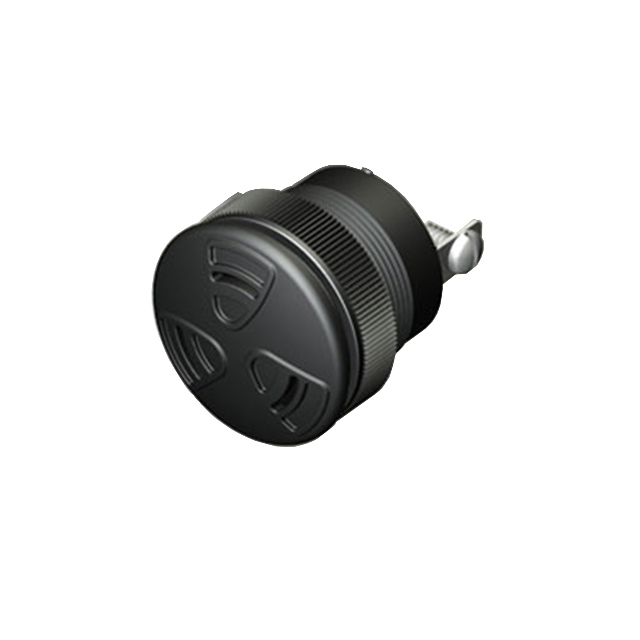

TXW-86 Series
Manufacturer: Floyd Bell Inc
Beta
⌘K
BUZZER PIEZO 33.02MM PNL MNT
| Part | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Voltage Range [Min] | Voltage Range [Max] | Port Location | Approval Agency | Input Type | Frequency | Ingress Protection | Current - Supply [Max] | Current - Supply [Min] | Driver Circuitry | Mounting Type | Sound Pressure Level (SPL) | Size / Dimension [diameter] | Size / Dimension [diameter] | Technology | Operating Mode | Termination | Termination | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | 29.97 mm | 1.18 in | 5 VDC | 15 V | Top | UL UR | DC | 2.9 kHz | IP68 - Dust Tight Waterproof | 50 mA | 10 mA | Indicator Internally Driven | Panel Mount | 103 dB | 1.3 in | 33.02 mm | Piezo | Slow Warble | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm |
 Floyd Bell Inc | 29.97 mm | 1.18 in | 5 VDC | 15 V | Top | UL UR | DC | 2.9 kHz | IP68 - Dust Tight Waterproof | 50 mA | 10 mA | Indicator Internally Driven | Panel Mount | 103 dB | 1.3 in | 33.02 mm | Piezo | Slow Warble | 0.25 " | Quick Connect Tab | 6.35 mm |
 Floyd Bell Inc | 29.97 mm | 1.18 in | 5 VDC | 15 V | Top | UL UR | DC | 2.9 kHz | IP68 - Dust Tight Waterproof | 50 mA | 10 mA | Indicator Internally Driven | Panel Mount | 103 dB | 1.3 in | 33.02 mm | Piezo | Slow Warble | Wire Leads | ||
 Floyd Bell Inc | 29.97 mm | 1.18 in | 5 VDC | 15 V | Top | UL UR | DC | 2.9 kHz | IP68 - Dust Tight Waterproof | 50 mA | 10 mA | Indicator Internally Driven | Panel Mount | 103 dB | 1.3 in | 33.02 mm | Piezo | Warble Fast | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm |
Floyd Bell Inc | 29.97 mm | 1.18 in | 5 VDC | 15 V | Top | UL UR | DC | 2.9 kHz | IP68 - Dust Tight Waterproof | 50 mA | 10 mA | Indicator Internally Driven | Panel Mount | 103 dB | 1.3 in | 33.02 mm | Piezo | Warble Fast | 0.25 " | Quick Connect Tab | 6.35 mm |
