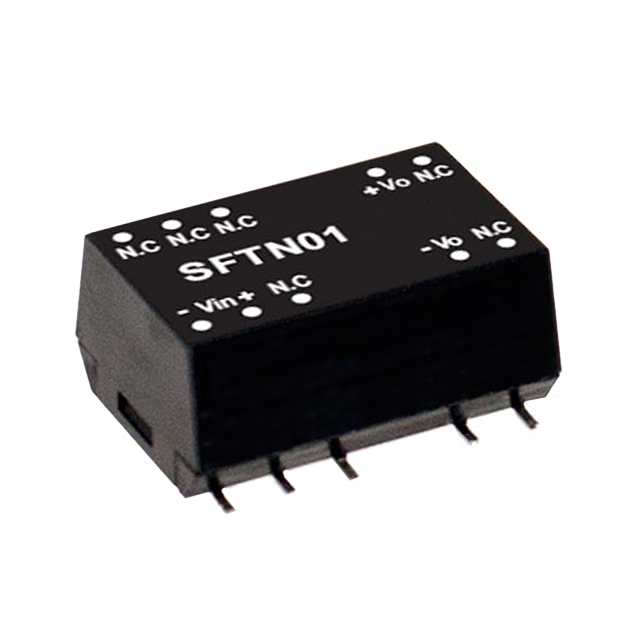

SFTN01 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC DC CONVERTER 5V 1W
| Part | Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Efficiency | Voltage - Isolation | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Package / Case | Mounting Type | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Number of Outputs | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Isolated Module | SCP | 90 °C | -40 °C | 200 mA | 77 % | 3000 V | ITE (Commercial) | 0.42 " | 15.2 mm | 10.7 mm | 7.1 mm | 0.28 " | 0.6 " | 12-SMD Module 10 Leads | Surface Mount | 26.4 V | 21.6 V | 1 | 5 V |
MEAN WELL USA Inc. | Isolated Module | SCP | 90 °C | -40 °C | 84 mA | 75 % | 3000 V | ITE (Commercial) | 0.42 " | 15.2 mm | 10.7 mm | 7.1 mm | 0.28 " | 0.6 " | 12-SMD Module 10 Leads | Surface Mount | 26.4 V | 21.6 V | 1 | 12 V |
