302-R16 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

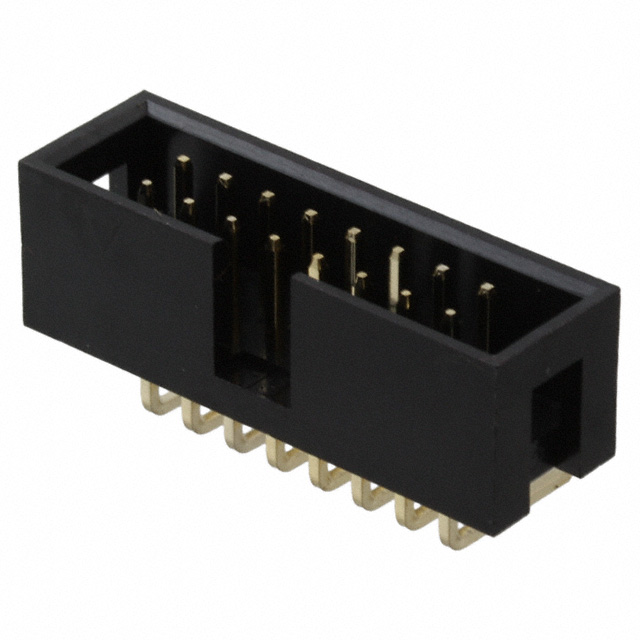

CONN HEADER R/A 16POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Voltage Rating | Material Flammability Rating | Contact Length - Post [x] | Contact Length - Post [x] | Current Rating (Amps) | Connector Type | Style | Contact Type | Fastening Type | Contact Shape | Insulation Height | Insulation Height | Mounting Type | Contact Finish - Post | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish Thickness - Mating | Contact Material | Pitch - Mating | Pitch - Mating | Shrouding | Contact Finish - Mating | Number of Rows [custom] | Features | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Number of Positions Loaded | Insulation Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 1.25 µin | 0.032 µm | 250 V | UL94 V-0 | 0.122 in | 3.1 mm | 3 A | Header | Board to Cable/Wire | Male Pin | Push-Pull | Square | 0.358 " | 9.1 mm | Right Angle Through Hole | Gold | 0.1 in | 2.54 mm | Flash | Brass | 0.1 " | 2.54 mm | Shrouded - 4 Wall | Gold | 2 | Keying Slot | 16 | -40 C | 105 ░C | Black | All | Polyester Glass Filled | Solder |
