LM5001-Q1 Series

3.1-V to 75-V wide VIN, 1-A current mode non-synchronous switch mode regulator

Catalog

3.1-V to 75-V wide VIN, 1-A current mode non-synchronous switch mode regulator

Part	Supplier Device Package	Function	Current - Output	Topology	Output Type	Qualification	Number of Outputs	Mounting Type	Package / Case	Package / Case [y]	Package / Case [x]	Output Configuration	Frequency - Switching [Min]	Frequency - Switching [Max]	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Max) [Max]	Grade	Voltage - Input (Min) [Min]	Voltage - Output (Min/Fixed)	Outputs and Type	Outputs and Type	Supplied Contents	Board Type	Utilized IC / Part	Voltage - Output	Frequency - Switching	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose
Texas Instruments LM5001IDQ1	8-SOIC	Step-Down Step-Up Step-Up/Step-Down	800 mA	Boost Flyback Forward Converter SEPIC	Adjustable	AEC-Q100	1	Surface Mount	8-SOIC	3.9 mm	0.154 in	Isolation Capable Positive	50 kHz	1.5 MHz	75 V	-40 °C	125 ¯C	76 V	Automotive	3.1 V	3.1 V
Texas Instruments LM5001MAX/NOPB	8-SOIC	Step-Up Step-Up/Step-Down	800 mA	Boost Flyback Forward Converter SEPIC	Adjustable		1	Surface Mount	8-SOIC	3.9 mm	0.154 in	Isolation Capable Positive	50 kHz	1.5 MHz	75 V	-40 °C	125 ¯C	76 V		3.1 V	3.1 V
Texas Instruments LM5001SDX	8-WSON (4x4)	Step-Up Step-Up/Step-Down	800 mA	Boost Flyback Forward Converter SEPIC	Adjustable		1	Surface Mount	8-WDFN Exposed Pad			Isolation Capable Positive	50 kHz	1.5 MHz	75 V	-40 °C	125 ¯C	76 V		3.1 V	3.1 V

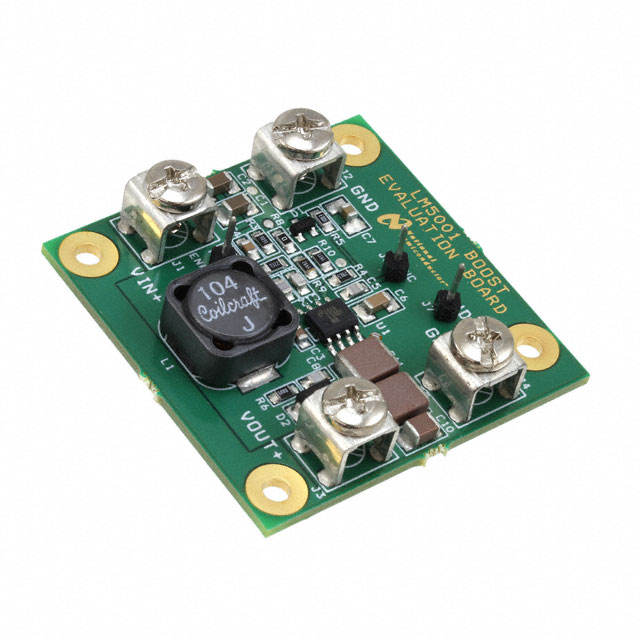

Texas Instruments LM5001BSTEVAL/NOPB			150 mA																			Non-Isolated	1	Board(s)	Fully Populated	LM5001	48 V	240 kHz	Boost	36 V	16 V	DC/DC Step Down
Texas Instruments LM5001SDX/NOPB	8-WSON (4x4)	Step-Up Step-Up/Step-Down	800 mA	Boost Flyback Forward Converter SEPIC	Adjustable		1	Surface Mount	8-WDFN Exposed Pad			Isolation Capable Positive	50 kHz	1.5 MHz	75 V	-40 °C	125 ¯C	76 V		3.1 V	3.1 V
Texas Instruments LM5001SD/NOPB	8-WSON (4x4)	Step-Up Step-Up/Step-Down	800 mA	Boost Flyback Forward Converter SEPIC	Adjustable		1	Surface Mount	8-WDFN Exposed Pad			Isolation Capable Positive	50 kHz	1.5 MHz	75 V	-40 °C	125 ¯C	76 V		3.1 V	3.1 V

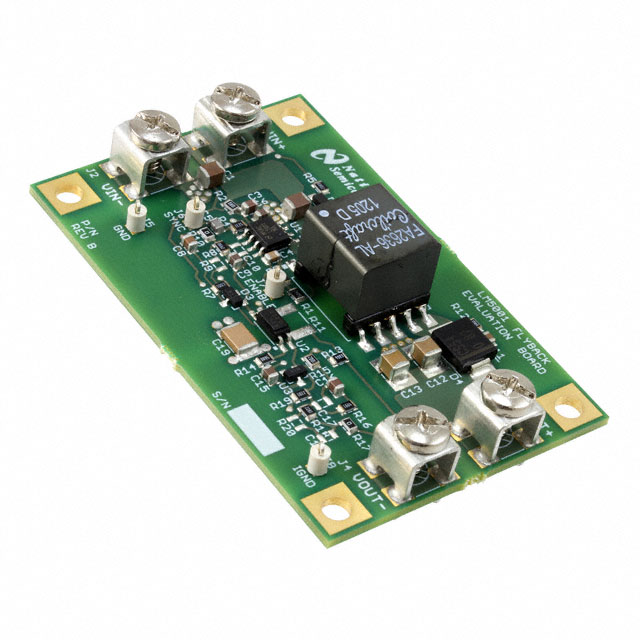

Texas Instruments LM5001ISOEVAL/NOPB			1 A																			Isolated	1	Board(s)	Fully Populated	LM5001	5 V	250 kHz	Flyback	42 V	16 V	DC/DC Step Down
Texas Instruments LM5001NISOEVAL			1 A																			Non-Isolated	1	Board(s)	Fully Populated	LM5001	5 V	250 kHz	Flyback	42 V	16 V	DC/DC Step Down
Texas Instruments LM5001MA/NOPB	8-SOIC	Step-Up Step-Up/Step-Down	800 mA	Boost Flyback Forward Converter SEPIC	Adjustable		1	Surface Mount	8-SOIC	3.9 mm	0.154 in	Isolation Capable Positive	50 kHz	1.5 MHz	75 V	-40 °C	125 ¯C	76 V		3.1 V	3.1 V
Texas Instruments LM5001SD	8-WSON (4x4)	Step-Up Step-Up/Step-Down	800 mA	Boost Flyback Forward Converter SEPIC	Adjustable		1	Surface Mount	8-WDFN Exposed Pad			Isolation Capable Positive	50 kHz	1.5 MHz	75 V	-40 °C	125 ¯C	76 V		3.1 V	3.1 V

Catalog

3.1-V to 75-V wide VIN, 1-A current mode non-synchronous switch mode regulator

Key Features

• AEC-Q100 Qualified (TJ= –40°C to 125°C)Integrated 75-V N-Channel MOSFETUltra-Wide Input Voltage Range from3.1 V to 75 VIntegrated High Voltage Bias RegulatorAdjustable Output Voltage1.5% Output Voltage AccuracyCurrent Mode Control with SelectableCompensationWide Bandwidth Error AmplifierIntegrated Current Sensing and LimitingIntegrated Slope Compensation85% Maximum Duty Cycle LimitSingle Resistor Oscillator ProgrammingOscillator Synchronization CapabilityEnable / Undervoltage Lockout (UVLO) PinThermal ShutdownAEC-Q100 Qualified (TJ= –40°C to 125°C)Integrated 75-V N-Channel MOSFETUltra-Wide Input Voltage Range from3.1 V to 75 VIntegrated High Voltage Bias RegulatorAdjustable Output Voltage1.5% Output Voltage AccuracyCurrent Mode Control with SelectableCompensationWide Bandwidth Error AmplifierIntegrated Current Sensing and LimitingIntegrated Slope Compensation85% Maximum Duty Cycle LimitSingle Resistor Oscillator ProgrammingOscillator Synchronization CapabilityEnable / Undervoltage Lockout (UVLO) PinThermal Shutdown

Description

The LM5001 high-voltage switch-mode regulator features all of the functions necessary to implement efficient high-voltage Boost, Flyback, SEPIC and Forward converters, using few external components. This easy-to-use regulator integrates a 75-V N-Channel MOSFET with a 1-A peak current limit. Current mode control provides inherently simple loop compensation and line-voltage feed-forward for superior rejection of input transients. The switching frequency is set with a single resistor and is programmable up to 1.5 MHz. The oscillator can also be synchronized to an external clock. Additional protection features include: current limit, thermal shutdown, undervoltage lockout and remote shutdown capability. The LM5001 high-voltage switch-mode regulator features all of the functions necessary to implement efficient high-voltage Boost, Flyback, SEPIC and Forward converters, using few external components. This easy-to-use regulator integrates a 75-V N-Channel MOSFET with a 1-A peak current limit. Current mode control provides inherently simple loop compensation and line-voltage feed-forward for superior rejection of input transients. The switching frequency is set with a single resistor and is programmable up to 1.5 MHz. The oscillator can also be synchronized to an external clock. Additional protection features include: current limit, thermal shutdown, undervoltage lockout and remote shutdown capability.
