470315CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

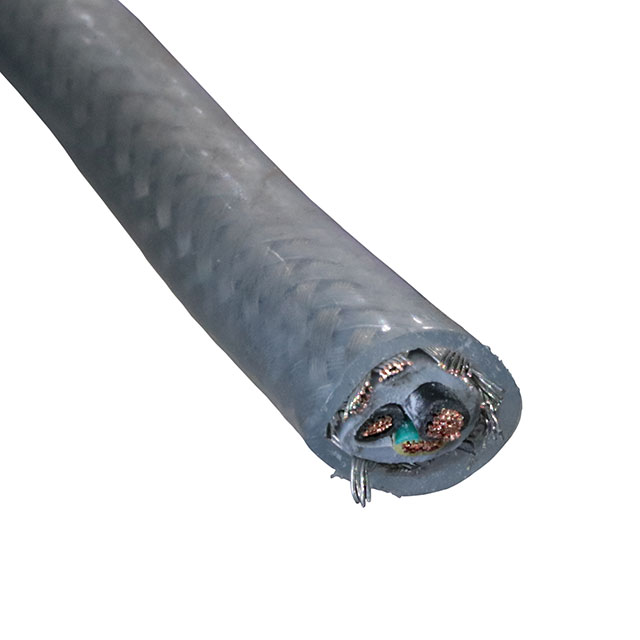

CABLE 3COND 15AWG CLEAR SHLD 5M
| Part | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Features | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Shield Type | Jacket Color | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Conductor Insulation | Wire Gauge | Cable Type | Shield Coverage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Poly-Vinyl Chloride (PVC) | 28 | 0.0098 in | Chemical Resistant Oil Resistant UV Resistant | 10 m 20 m 30 m | 32.81 ft 65.62 ft 98.43 ft | 0.365 in | 9.27 mm | 3 | -40 °C | 80 C | Copper Bare | Braid | Clear | Copper Tinned | 0.0374 in | 0.95 mm | 300 V | Poly-Vinyl Chloride (PVC) | 15 AWG | Multi-Conductor | 80 % |
ALPHA WIRE | Poly-Vinyl Chloride (PVC) | 28 | 0.0098 in | Chemical Resistant Oil Resistant UV Resistant | 50 m | 164 ft | 0.365 in | 9.27 mm | 3 | -40 °C | 80 C | Copper Bare | Braid | Clear | Copper Tinned | 0.0374 in | 0.95 mm | 300 V | Poly-Vinyl Chloride (PVC) | 15 AWG | Multi-Conductor | 80 % |
