MAX5022 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

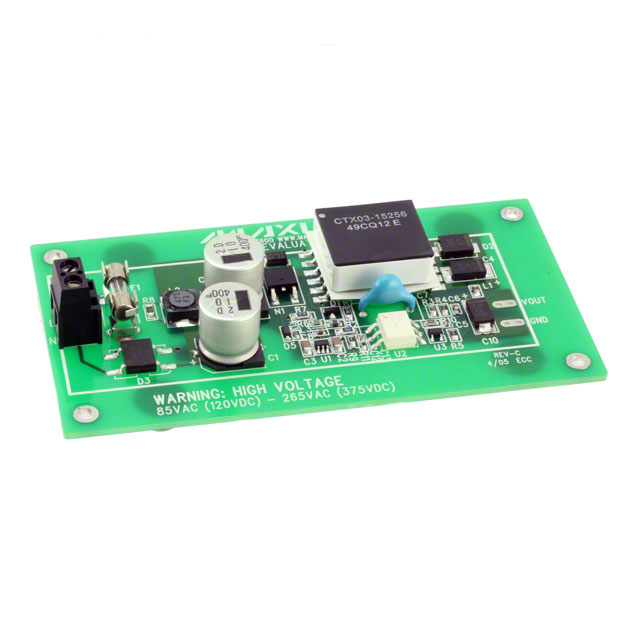

EVAL KIT FOR MAX5022
| Part | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Main Purpose | Frequency - Switching | Current - Output | Regulator Topology | Voltage - Output | Voltage - Input [Min] | Voltage - Input [Max] | Power - Output | Utilized IC / Part | Output Phases | Package / Case | Package / Case [custom] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Duty Cycle (Max) [Max] | Topology | Clock Sync | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Synchronous Rectifier | Mounting Type | Supplier Device Package | Output Type | Output Configuration | Number of Outputs | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | Board(s) | Isolated | 1 | Fully Populated | AC/DC Primary Side | 262 kHz | 1 A | Flyback | 5 V | 85 VAC | 265 VAC | 5 W | MAX5022 | ||||||||||||||||||
 Analog Devices Inc./Maxim Integrated | 262 kHz | 1 | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | 85 °C | -40 °C | 75 % | Flyback Forward Converter | 11 V | 28 V | Surface Mount | 8-uMAX/uSOP | Transistor Driver | Isolation Capable Positive | 1 | Step-Up/Step-Down | ||||||||||||||
Analog Devices Inc./Maxim Integrated | 262 kHz | 1 | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | 85 °C | -40 °C | 75 % | Flyback Forward Converter | 11 V | 28 V | Surface Mount | 8-uMAX/uSOP | Transistor Driver | Isolation Capable Positive | 1 | Step-Up/Step-Down | ||||||||||||||
 Analog Devices Inc./Maxim Integrated | 262 kHz | 1 | SOT-23-6 | 85 °C | -40 °C | 75 % | Flyback Forward Converter | 11 V | 28 V | Surface Mount | SOT-6 | Transistor Driver | Isolation Capable Positive | 1 | Step-Up/Step-Down |
