NPPN101 Series

Catalog

CONN HDR 10POS 0.079 GOLD PCB

Part	Contact Finish Thickness - Post	Insulation Material	Contact Shape	Contact Material	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Insulation Color	Current Rating (Amps)	Connector Type	Mounting Type	Fastening Type	Material Flammability Rating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Number of Rows	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Post	Number of Positions Loaded	Contact Finish Thickness - Mating	Termination	Voltage Rating	Insulation Height [z]	Insulation Height [z]

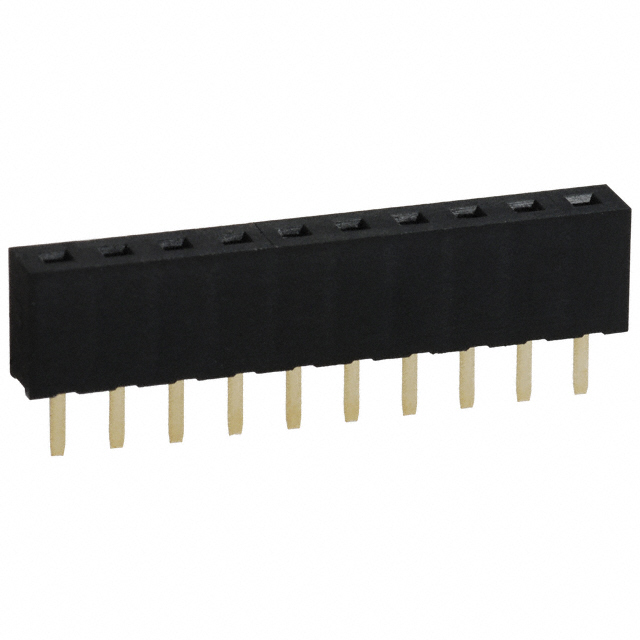

Sullins Connector Solutions NPPN101BFCN-RC	Flash	Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	4.4 mm	0.173 in	2.4 mm	0.094 in	Black	2 A	Header	Through Hole	Push-Pull	UL94 V-0	Female Socket	-40 C	105 ░C	Gold	1	0.079 "	2 mm	10	Gold	All	Flash	Solder

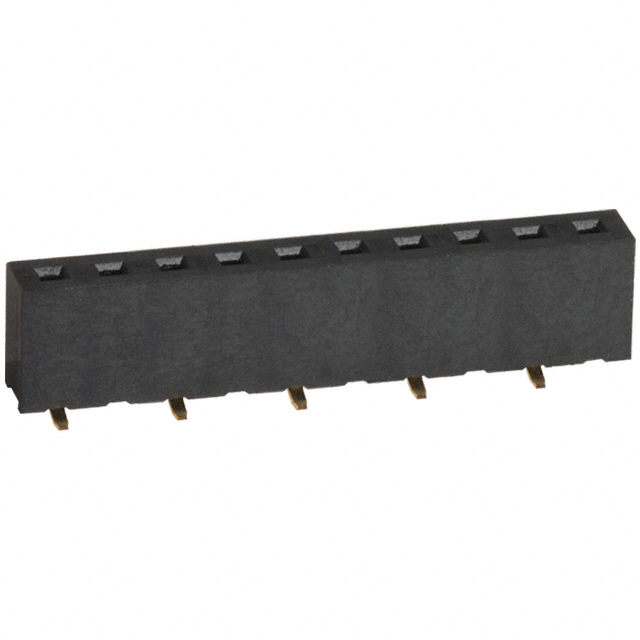

Sullins Connector Solutions NPPN101BFLD-RC	Flash	Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze					Black	2 A	Header	Surface Mount	Push-Pull	UL94 V-0	Female Socket	-40 C	105 ░C	Gold	1	0.079 "	2 mm	10	Gold	All	Flash	Solder	150 VDC	0.181 in	4.6 mm
