G3T23A Series

Catalog

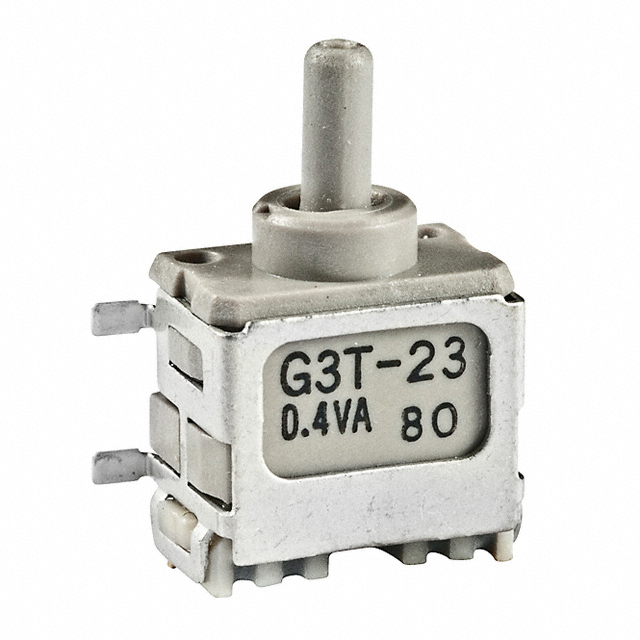

PROCESS SEALED ULTRA-MINIATURE SMT TOGGLE

Part	Actuator Material	Electrical Life	Actuator Length [x]	Mounting Type	Bushing Thread	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Voltage Rating - DC	Actuator Type	Illumination	Voltage Rating - AC	Circuit	Features	Termination Style
NKK Switches G3T23AP	Polyphenylene Sulfide (PPS)	50000 Cycles	3.81 mm	Surface Mount	Unthreaded	0.4 VA	85 °C	-30 ░C	On-Off-On	28 V	Standard Round	Non-Illuminated	28 V	DPDT	Process Sealed	Gull Wing
NKK Switches G3T23AB	Polyphenylene Sulfide (PPS)	50000 Cycles	3.81 mm	Surface Mount	Unthreaded	0.4 VA	85 °C	-30 ░C	On-Off-On	28 V	Standard Round	Non-Illuminated	28 V	DPDT	Process Sealed	Gull Wing
NKK Switches G3T23AH-R	Polyphenylene Sulfide (PPS)	50000 Cycles	3.81 mm	Right Angle Surface Mount	Unthreaded	0.4 VA	85 °C	-30 ░C	On-Off-On	28 V	Standard Round	Non-Illuminated	28 V	DPDT	Process Sealed	Gull Wing
