2213266 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

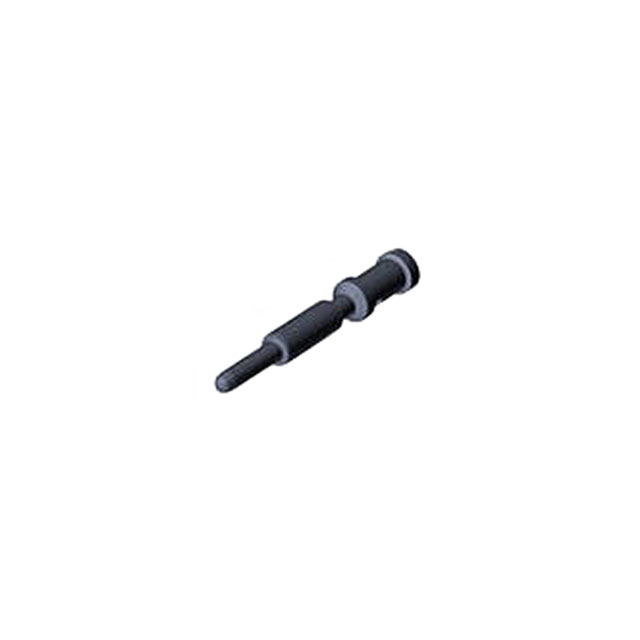

CONN SSL PIN CONT 16-18AWG CRIMP
| Part | Connector Type | Voltage Rating | Termination | Number of Positions | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Style | Current Rating (Amps) | Mounting Type | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Contact Pin | 400 V | Crimp | 1 | 16 AWG | 18 AWG | Tin | 85 °C | -40 °C | Copper Alloy | Cable/Wire to Cable/Wire or Board | 7 A 10 A | Free Hanging (In-Line) | |
 TE Connectivity Raychem Cable Protection | Contact Pin | 400 V | Crimp | 1 | Tin | 85 °C | -40 °C | Copper Alloy | Cable/Wire to Cable/Wire or Board | 15 A | Free Hanging (In-Line) | 13.5 AWG |
