LCM-S02402 Series

Catalog

LCD MOD 48 DIG 24 X 2 REFLECTIVE

Part	Character Size [y]	Character Size [z]	Viewing Area [y]	Viewing Area [x]	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Operating Temperature [Max]	Dot Size [custom]	Dot Size [custom]	Character Format [x]	Character Format [y]	Display Type	Display Mode	Interface	Number of Characters	Display Format [x]	Display Format [y]	Background Color

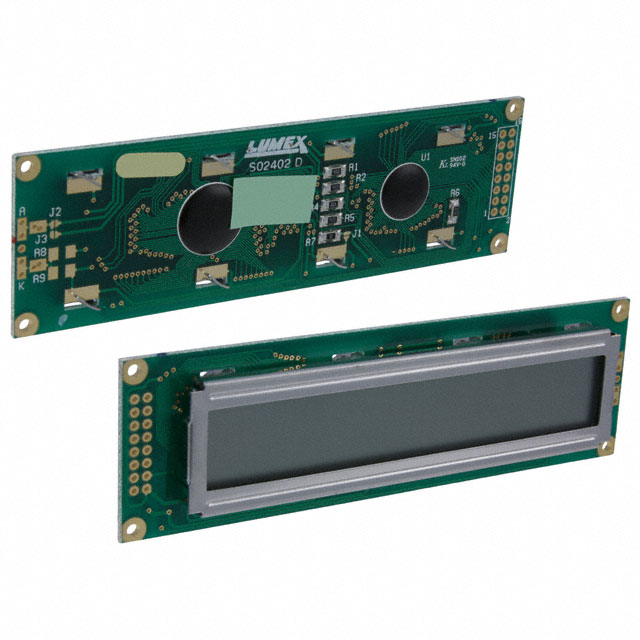

Lumex Opto/Components Inc. LCM-S02402DTR	3.2 mm	5.55 mm	16 mm	93.5 mm	8.8 mm	36 mm	118 mm	50 °C	0.65 mm	0.6 mm	5 Dots	8 Dots	TN - Twisted Nematic	Reflective	Parallel	48	24	2

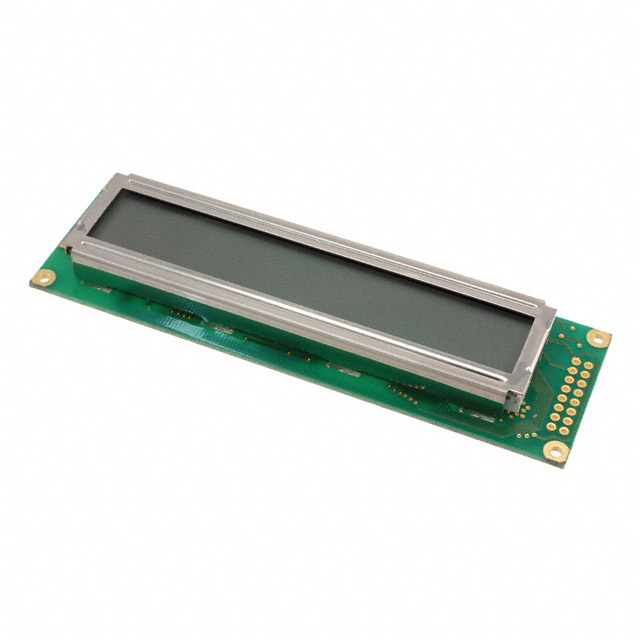

Lumex Opto/Components Inc. LCM-S02402DSF	3.2 mm	5.55 mm	16 mm	93.5 mm	12.7 mm	36 mm	118 mm	50 °C	0.65 mm	0.6 mm	5 Dots	8 Dots	STN - Super-Twisted Nematic	Transflective	Parallel	48	24	2	Green
Lumex Opto/Components Inc. LCM-S02402DTF	3.2 mm	5.55 mm	16 mm	93.5 mm	12.7 mm	36 mm	118 mm	50 °C	0.65 mm	0.6 mm	5 Dots	8 Dots	TN - Twisted Nematic	Transflective	Parallel	48	24	2
Lumex Opto/Components Inc. LCM-S02402DSM	3.2 mm	5.55 mm	16 mm	93.5 mm	8.8 mm	36 mm	118 mm	50 °C	0.65 mm	0.6 mm	5 Dots	8 Dots	STN - Super-Twisted Nematic	Transmissive	Parallel	48	24	2

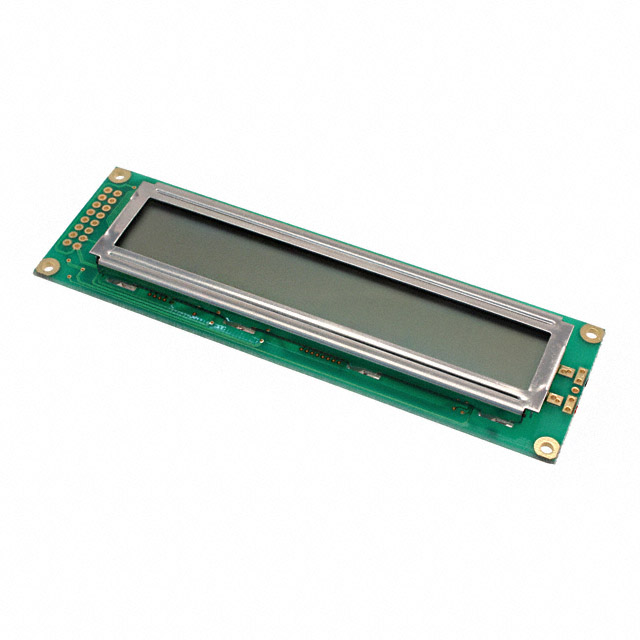

Lumex Opto/Components Inc. LCM-S02402DSR	3.2 mm	5.55 mm	16 mm	93.5 mm	8.8 mm	36 mm	118 mm	50 °C	0.65 mm	0.6 mm	5 Dots	8 Dots	STN - Super-Twisted Nematic	Reflective	Parallel	48	24	2	Green
