BD9E101FJ-LB(E2) Series

7.0V to 36V Input, 1.0A Integrated MOSFET Single Synchronous Buck DC/DC Converter

Catalog

7.0V to 36V Input, 1.0A Integrated MOSFET Single Synchronous Buck DC/DC Converter

Part	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Voltage - Output (Max)	Function	Synchronous Rectifier	Output Type	Frequency - Switching	Current - Output	Package / Case	Package / Case [y]	Package / Case [x]	Output Configuration	Mounting Type	Topology	Number of Outputs	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Outputs and Type	Outputs and Type	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Voltage - Output	Board Type	Regulator Topology	Supplied Contents
Rohm Semiconductor BD9E101FJ-LBGE2	36 V	1 V	25.2 V	Step-Down		Adjustable	570 kHz	1 A	8-SOIC	3.9 mm	0.154 in	Positive	Surface Mount	Buck	1	7 V	150 °C	-40 °C	8-SOP-J

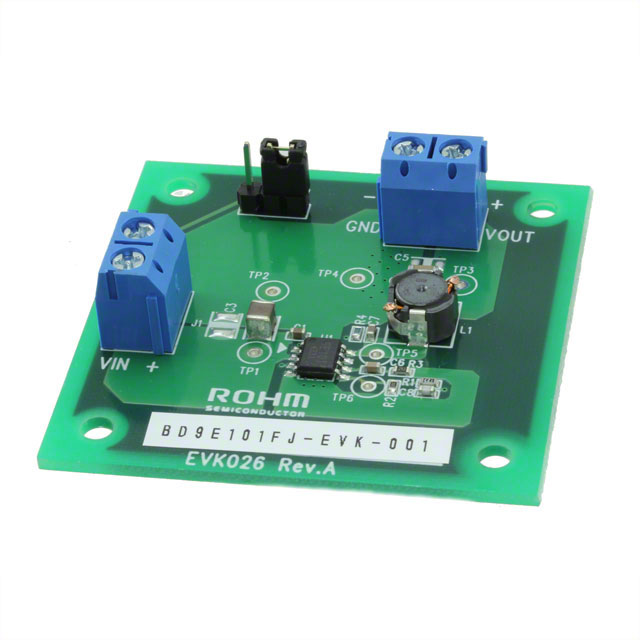

Rohm Semiconductor BD9E101FJ-EVK-001							570 kHz	1 A												Non-Isolated	1	DC/DC Step Down	7.2 V	36 V	BD9E101	5 V	Fully Populated	Buck	Board(s)

Catalog

7.0V to 36V Input, 1.0A Integrated MOSFET Single Synchronous Buck DC/DC Converter

Key Features

• Long Time Support Product for Industrial Applications., Synchronous single DC/DC converter., Over-Current Protection., Short Circuit Protection., Thermal Shutdown Protection., Under voltage Lockout Protection., Soft Start., HTSOP-J8 package (Exposed Pad).

Description

This product guarantees long life cycle in Industrial market. BD9E101FJ-LB is a synchronous buck switching regulator with built-in power MOSFETs. It is capable of an output current of up to 1.0A. It is a current mode control DC/DC converter and features high-speed transient response. Phase compensation can also be set easily.
