LWG6 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

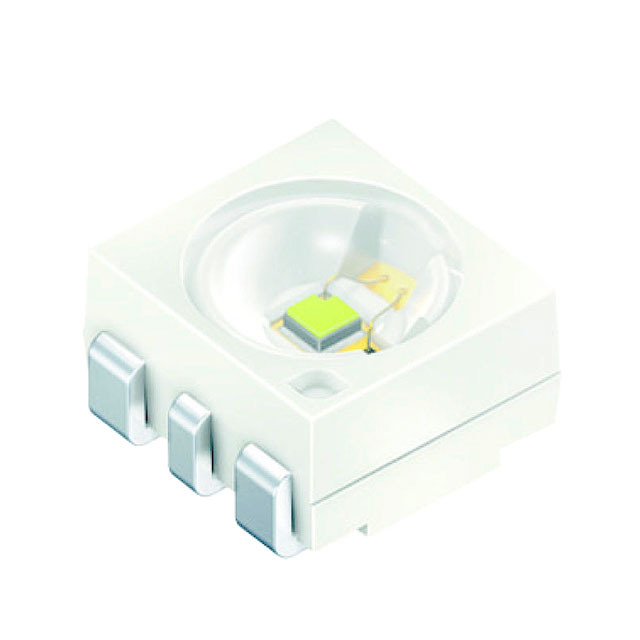

LED TOPLED COOL WHT 5600K 6PLCC
| Part | Thermal Resistance of Package | Current - Max [Max] | Flux @ 25°C, Current - Test | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Lumens/Watt @ Current - Test | Package / Case | Supplier Device Package | CCT (K) | Voltage - Forward (Vf) (Typ) | Current - Test | Color | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Viewing Angle | CRI (Color Rendering Index) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 40 °C/W | 250 mA | 32 lm | 0.118 in | 0.13 " | 3.3 mm | 3 mm | 69 lm/W | 6-SMD J-Lead | 6-PLCC | 5600 K | 3.3 V | 140 mA | Cool White | 2.1 mm | 0.083 in | Surface Mount | ||
 ams-OSRAM USA INC. | 250 mA | 11 lm | 0.118 in | 0.13 " | 3.3 mm | 3 mm | 24 lm/W | 6-SMD J-Lead | 6-SMD | 5600 K | 3.3 V | 140 mA | Cool White | 2.1 mm | 0.083 in | Surface Mount | 120 ° | 80 |
