5646 Series

Manufacturer: BRADY

Catalog

B689 5646-I WHT/GRN STYLE I

Part	Mounting Type	Application Specifics	Location	Color - Legend	Outside Pipe Diameter (Min)	Outside Pipe Diameter (Min) [Min]	Color - Background	Applications	Arrangement	Legend (Symbol Only)	Material - Body	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Length	Length	Shape	Features	Language	Print Type	Width	Width	Legend (Text)	Outside Pipe Diameter (Min) [Min]	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max]	Length [x]	Length [x]
BRADY 5646-I	Snap On	Water Fluids	Outdoor	White	60.33 mm	2.375 in	Green	Pipe	Symbol and Text	Directional Arrow	Plastic	1.5 in	38.1 mm	9 in	228.6 mm	Rectangle	Chemical Resistant	63000 A 69000 A	Pre-Printed	8 in	203.2 mm	Chilled Water

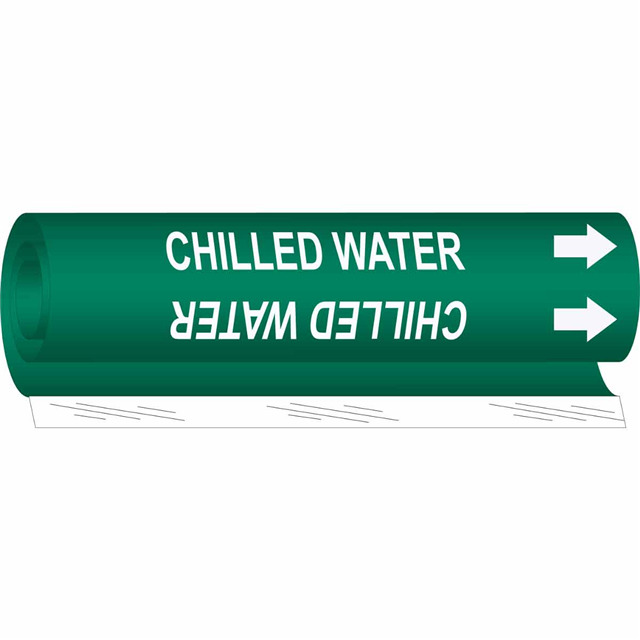

BRADY 5646-II	Snap On	Directionality	Outdoor	White		7.875 in	Green	Pipe	Symbol and Text	Directional Arrow	Plastic					Rectangle	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	63000 A 69000 A	Pre-Printed	12 in	304.8 mm	Chilled Water	200.03 mm	63.5 mm	2.5 in	660.4 mm	26 in
