082-67 Series
Manufacturer: Amphenol RF
Beta
⌘K
RF / COAXIAL CONNECTOR, N COAXIAL, STRAIGHT BULKHEAD JACK, SOLDER, 50 OHM
| Part | Number of Ports | Impedance | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Housing Color | Ingress Protection | Mounting Feature | Connector Type | Mating Cycles | Voltage Rating | Center Contact Material | Body Finish | Body Material | Contact Termination | Shield Termination | Center Contact Plating | Frequency - Max [Max] | Cable Group | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

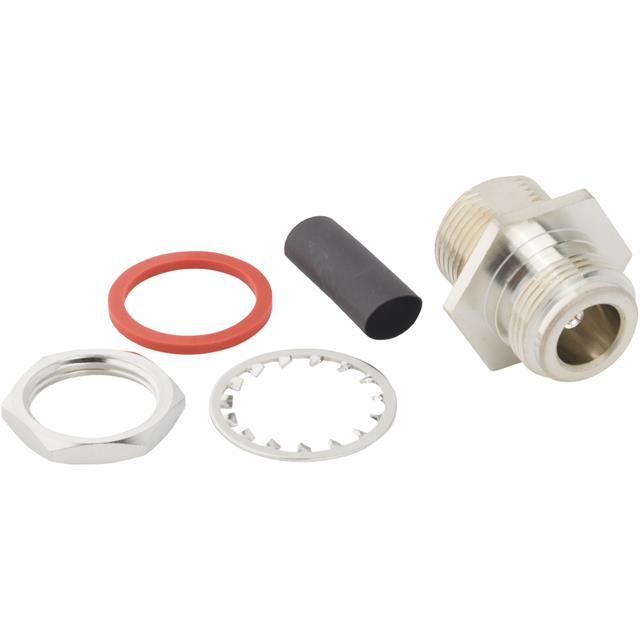

 Amphenol RF | 1 | 50 Ohms | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | N Type | Natural | IP67 - Dust Tight Waterproof | Bulkhead - Front Side Nut | Female Socket Jack | 500 | 500 V | Beryllium Copper | White Bronze | Brass | Crimp | Solder | Silver | 18 GHz | ||

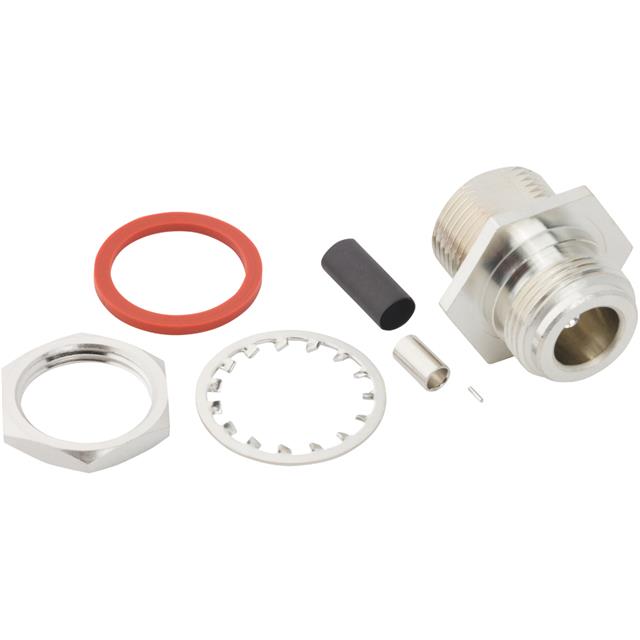

 Amphenol RF | 1 | 50 Ohms | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | N Type | Natural | IP67 - Dust Tight Waterproof | Bulkhead - Front Side Nut | Female Socket Jack | 500 | 500 V | Beryllium Copper | White Bronze | Brass | Crimp | Solder | Silver | 3 GHz | RG-178 | |

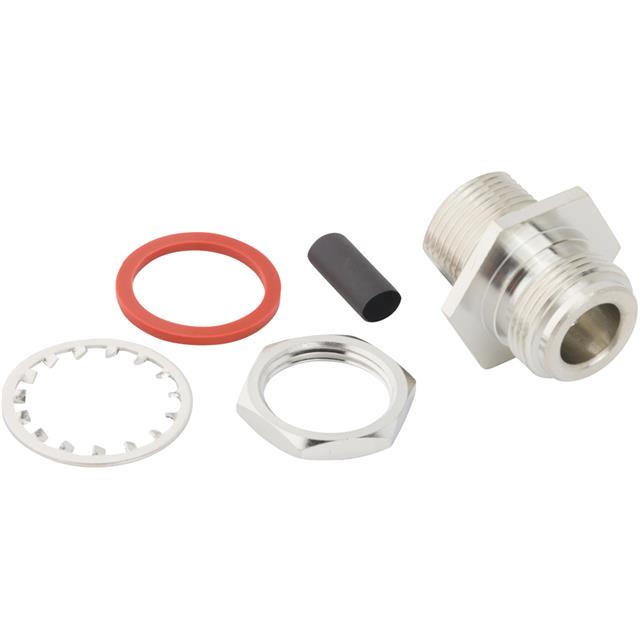

 Amphenol RF | 1 | 50 Ohms | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | N Type | Natural | IP67 - Dust Tight Waterproof | Bulkhead - Front Side Nut | Female Socket Jack | 500 | 500 V | Beryllium Copper | White Bronze | Brass | Crimp | Solder | Silver | 18 GHz | RG-405 (.085" Semi Rigid) | |

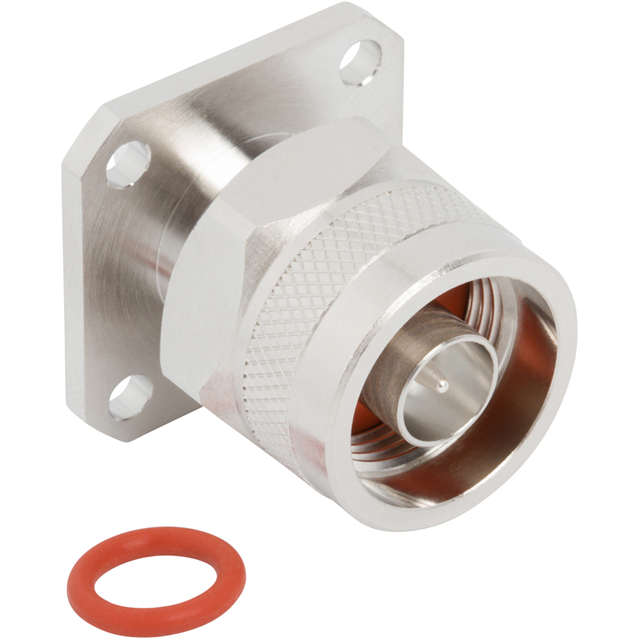

 Amphenol RF | 1 | 50 Ohms | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | N Type | Silver | Flange | Jack Male Pin | 500 | Beryllium Copper | White Bronze | Brass | Solder | Solder | Silver | 18 GHz | Extended Insulation | |||

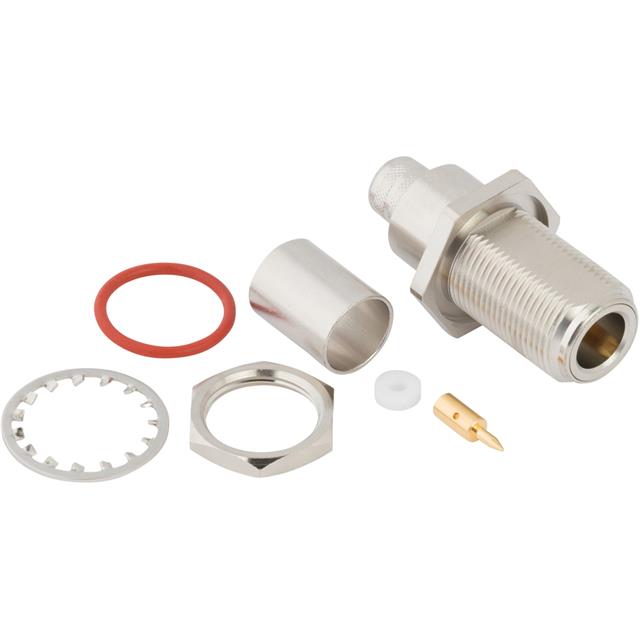

 Amphenol RF | 1 | 50 Ohms | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | N Type | Silver | IP67 - Dust Tight Waterproof | Bulkhead - Front Side Nut | Female Socket Jack | 500 | 500 V | Beryllium Copper | Nickel | Brass | Solder | Crimp | Gold | 11 GHz | ||

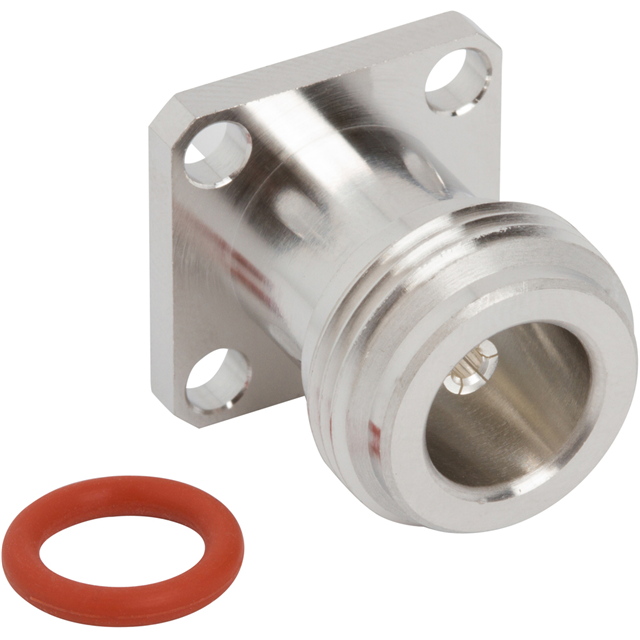

 Amphenol RF | 1 | 50 Ohms | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | N Type | Silver | Flange | Female Socket Jack | 500 | Beryllium Copper | White Bronze | Brass | Solder | Solder | Silver | 18 GHz | Extended Insulation | |||

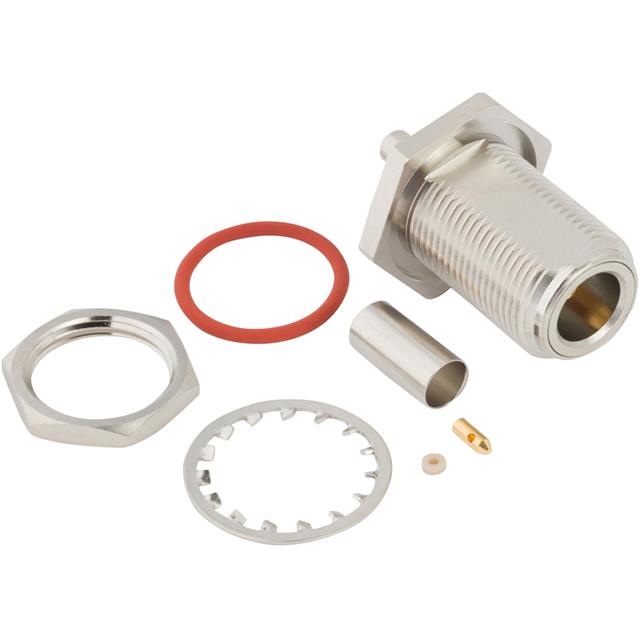

 Amphenol RF | 1 | 50 Ohms | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | N Type | Silver | IP67 - Dust Tight Waterproof | Bulkhead - Front Side Nut | Female Socket Jack | 500 | 500 V | Beryllium Copper | Nickel | Brass | Solder | Crimp | Gold | 11 GHz | ||
 Amphenol RF | 1 | 50 Ohms | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | N Type | Silver | Flange | Female Socket Jack | 500 | Beryllium Copper | White Bronze | Brass | Solder | Solder | Silver | 18 GHz | Extended Insulation |
