967650 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN PLUG HSNG FMALE 5POS INLINE
| Part | Note | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Ingress Protection | Fastening Type | Mounting Type | Contact Type | Material Flammability Rating | Shell Material | Orientation | Shielding | Number of Positions | Type | Connector Type | Features | Contact Size | Housing Color | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Contacts Not Included | 120 °C | -40 C | Circular | IP67/IP69K | Bayonet Lock | Free Hanging (In-Line) | Crimp | UL94 HB | Polybutylene Terephthalate (PBT) Glass Filled | A | Unshielded | 5 | For Female Sockets | Plug Housing | Coupling Nut | 1.5 mm | Black | |
 TE Connectivity AMP Connectors | Contacts Not Included | 120 °C | -40 C | Circular | IP67/IP69K | Bayonet Lock | Free Hanging (In-Line) | Crimp | UL94 HB | Polybutylene Terephthalate (PBT) Glass Filled | A | Unshielded | 6 | For Female Sockets | Plug Housing | Coupling Nut | 1.5 mm | Black | |

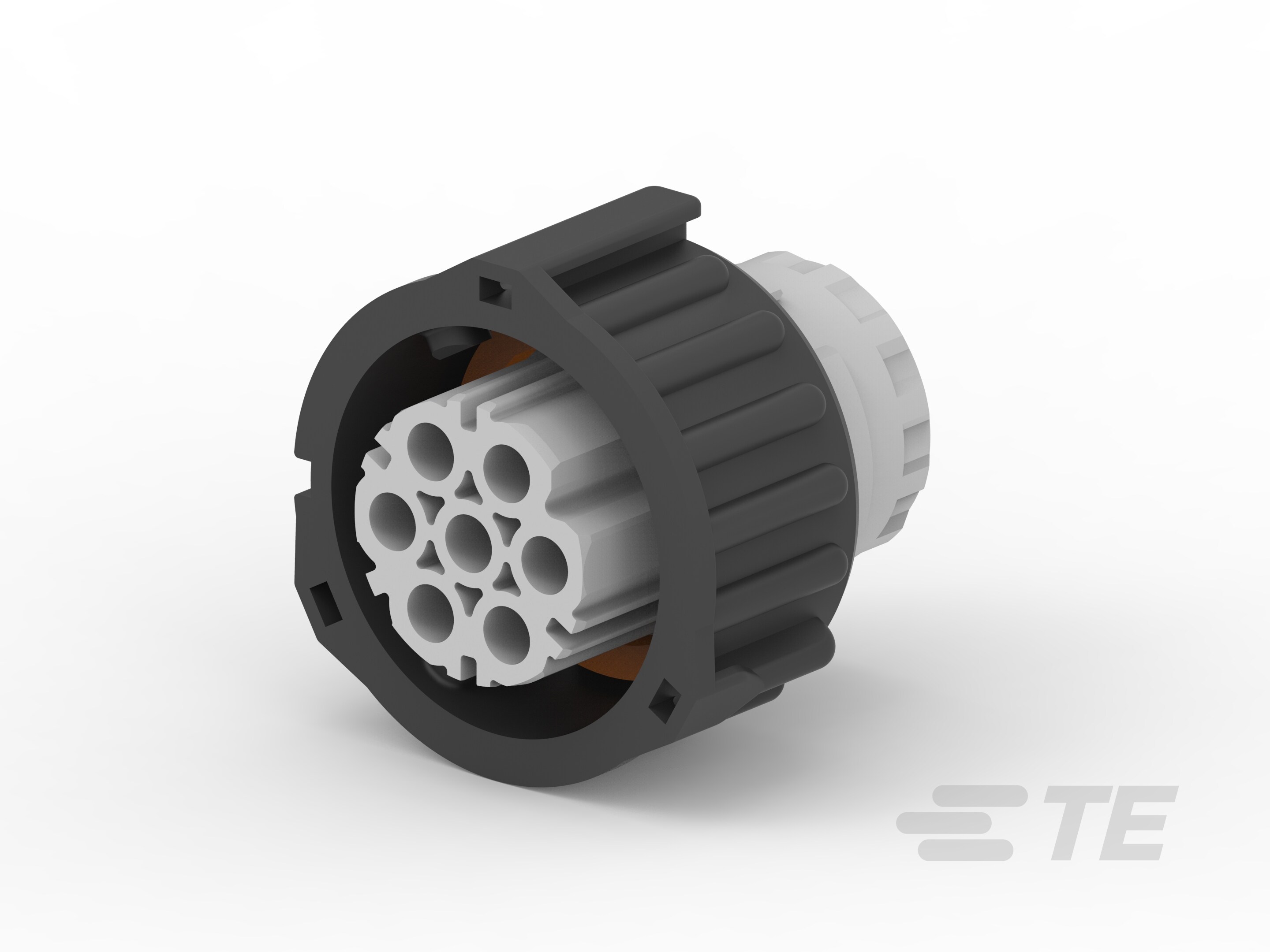

 TE Connectivity AMP Connectors | Contacts Not Included | 120 °C | -40 C | Circular | IP69K - Dust Tight High Temp Water Jets Waterproof | Bayonet Lock | Free Hanging (In-Line) | Crimp | UL94 HB | Polybutylene Terephthalate (PBT) Glass Filled | B | Unshielded | 7 | For Female Sockets | Plug Housing | Coupling Nut | 1.5 mm | Black Gray | Plastic |
