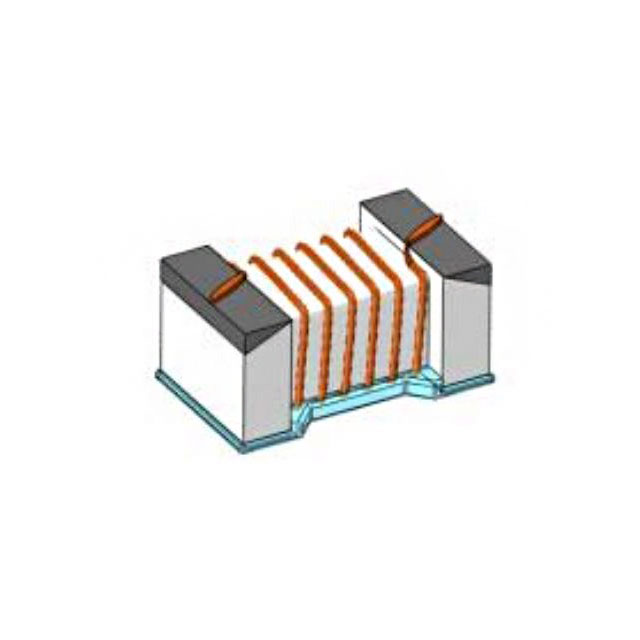

MWSD1005CP7 Series

Catalog

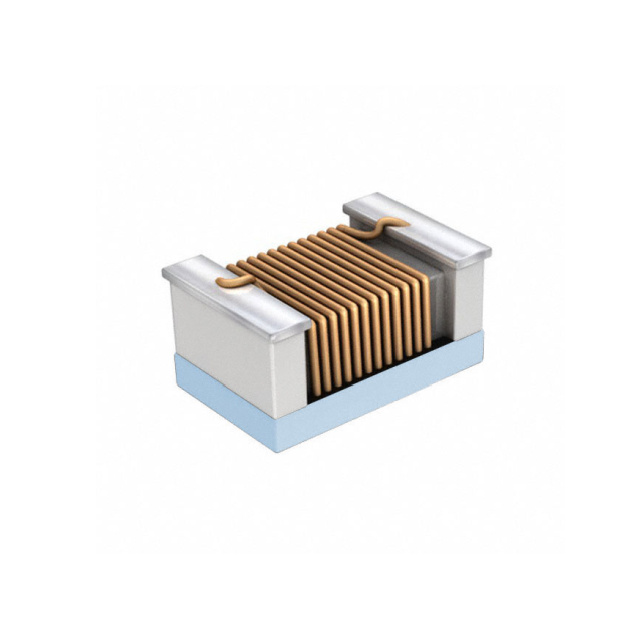

FIXED IND 7.5NH 1.4A 80MOHM SMD

Part	Mounting Type	Type	Q @ Freq [custom]	Q @ Freq [custom]	Tolerance	Frequency - Self Resonant	Package / Case	Inductance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Inductance Frequency - Test	Current Rating (Amps)	DC Resistance (DCR) [Max]	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Material - Core	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005CP7N5HSTF	Surface Mount	Drum Core Wirewound	26	250 MHz	3 %	5.4 GHz	0402 (1005 Metric)	7.5 nH	0.024 "	1.1 mm	0.6 mm	0.043 in	250 MHz	1.4 A	80 mOhm	Unshielded	125 °C	-40 C	0402	Ceramic	0.7 mm	0.028 "
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005CP7N5JSTF	Surface Mount	Drum Core Wirewound	26	250 MHz	5 %	5.4 GHz	0402 (1005 Metric)	7.5 nH	0.024 "	1.1 mm	0.6 mm	0.043 in	250 MHz	1.4 A	80 mOhm	Unshielded	125 °C	-40 C	0402	Ceramic	0.7 mm	0.028 "
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005CP7N5GSTF	Surface Mount	Drum Core Wirewound	26	250 MHz	2 %	5.4 GHz	0402 (1005 Metric)	7.5 nH	0.024 "	1.1 mm	0.6 mm	0.043 in	250 MHz	1.4 A	80 mOhm	Unshielded	125 °C	-40 C	0402	Ceramic	0.7 mm	0.028 "
