1241.1055 Series

Catalog

SWITCH TACT SPST-NO 0.125A 48V

Part	Actuator Material	Mechanical Life	Switch Travel	Switch Function	Mounting Type	Actuator Type	Operating Force	Circuit	Termination Style	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Ingress Protection	Contact Rating @ Voltage	Outline [x]	Outline [y]

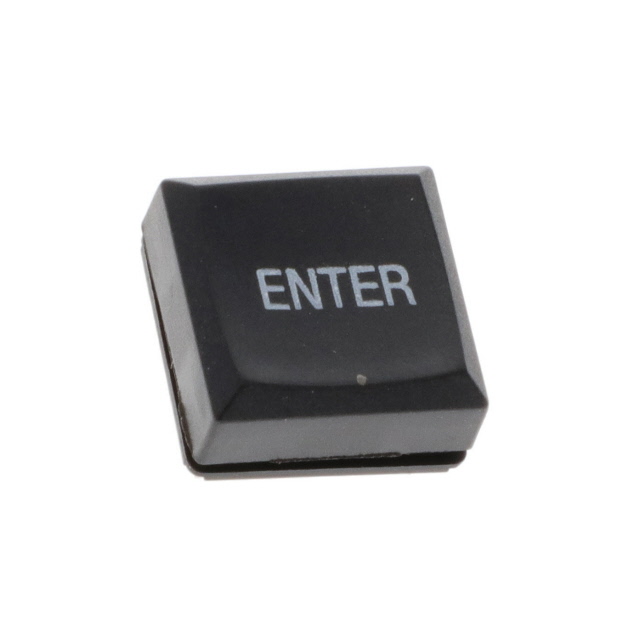

SCHURTER Inc. 1241.1055.7058	Thermoplastic	1000000 Cycles	0.45 mm	Off-Mom	Through Hole	Round Button	235 gf	SPST-NO	PC Pin	Top Actuated	5.85 mm	85 °C	-25 °C	Non-Illuminated	IP40	0.125 A 48 VDC	12.65 mm	12.65 mm

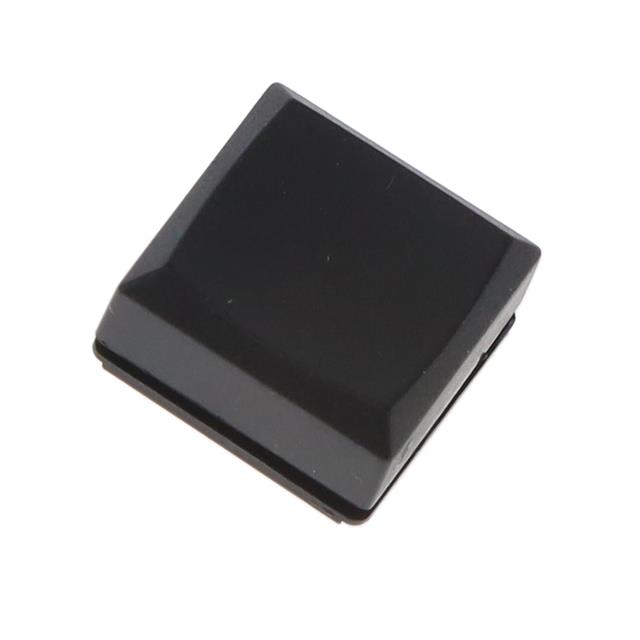

SCHURTER Inc. 1241.1055.7000

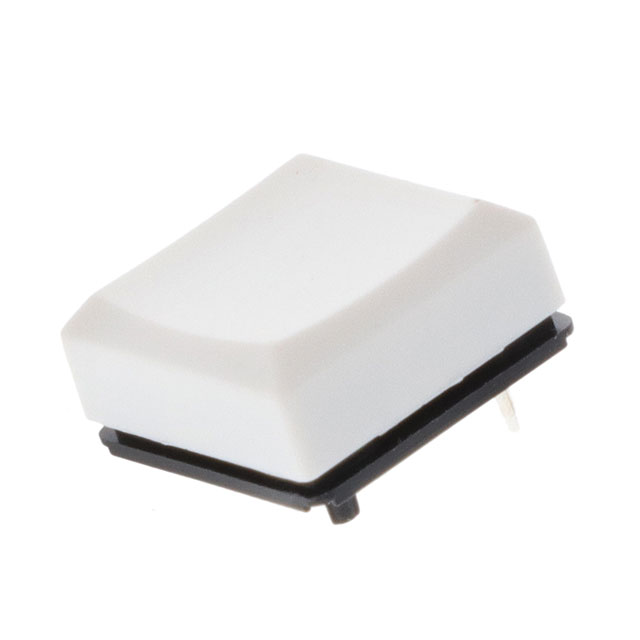

SCHURTER Inc. 1241.1055.8000	Thermoplastic	1000000 Cycles	0.45 mm	Off-Mom	Through Hole	Round Button	235 gf	SPST-NO	PC Pin	Top Actuated	5.85 mm	85 °C	-25 °C	Non-Illuminated	IP40	0.125 A 48 VDC	12.65 mm	12.65 mm
