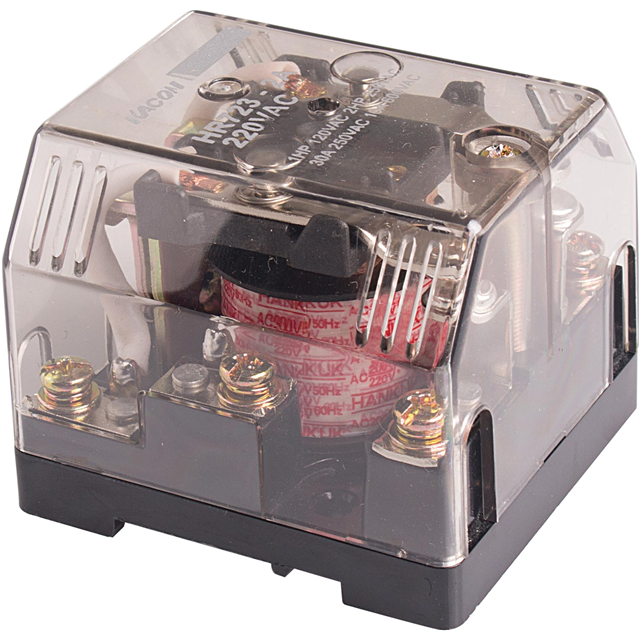

HR723 Series
Manufacturer: Kacon
Beta
⌘K
RELAY GEN PURPOSE DPDT 30A 220V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Operate Time | Contact Rating (Current) | Coil Voltage | Coil Current | Mounting Type | Termination Style | Switching Voltage [Max] | Contact Form | Contact Material | Relay Type | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kacon | -55 C | 80 °C | 30 ms | 30 A | 220 VAC/DC | 43.6 mA | DIN Rail | Screw Terminal | 110 VDC 250 VAC | DPDT (2 Form C) | Silver Alloy | General Purpose | 30 ms |
Kacon | -55 C | 80 °C | 30 ms | 30 A | 110 VAC/DC | 87.3 mA | DIN Rail | Screw Terminal | 110 VDC 250 VAC | DPST-NO (2 Form A) | Silver Alloy | General Purpose | 30 ms |
Kacon | -55 C | 80 °C | 30 ms | 30 A | 220 VAC/DC | 43.6 mA | DIN Rail | Screw Terminal | 110 VDC 250 VAC | SPDT (1 Form C) | Silver Alloy | General Purpose | 30 ms |
Kacon | -55 C | 80 °C | 30 ms | 30 A | 24 VDC | 117 mA | DIN Rail | Screw Terminal | 110 VDC 250 VAC | DPST-NO (2 Form A) | Silver Alloy | General Purpose | 30 ms |
Kacon | -55 C | 80 °C | 30 ms | 30 A | 220 VAC/DC | 43.6 mA | DIN Rail | Screw Terminal | 110 VDC 250 VAC | DPST-NO (2 Form A) | Silver Alloy | General Purpose | 30 ms |
Kacon | -55 C | 80 °C | 30 ms | 30 A | 24 VDC | 117 mA | DIN Rail | Screw Terminal | 110 VDC 250 VAC | DPDT (2 Form C) | Silver Alloy | General Purpose | 30 ms |
