073391 Series
Manufacturer: Molex
Beta
⌘K
SMA JACK TAB TERMINAL 4 HOLES
| Part | Voltage Rating | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Mounting Type | Number of Ports | Contact Termination | Body Material | Connector Type | Center Contact Material | Shield Termination | Impedance | Frequency - Max [Max] | Body Finish | Center Contact Plating | Mating Cycles | Dielectric Material | Mounting Feature | Cable Group | Includes | Contact Material | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | |||||||||||||||||||||||

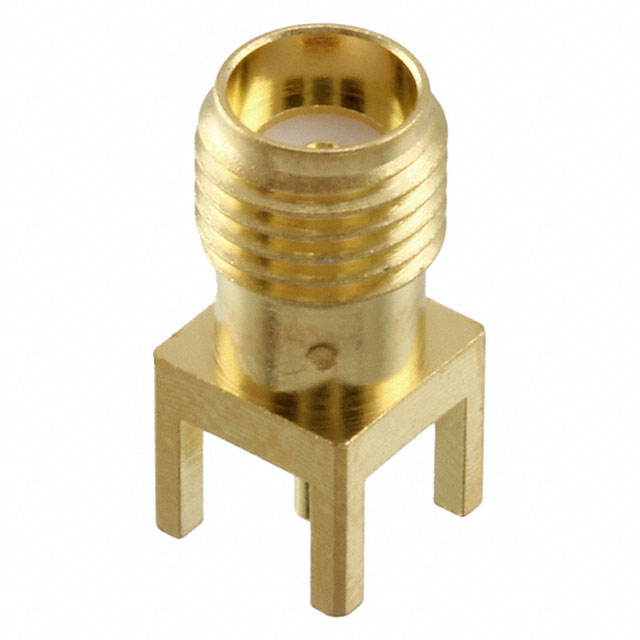

 Molex | 500 V | Gold | -65 ░C | 165 °C | SMA | Through Hole | 1 | Solder | Brass | Female Socket Receptacle | Beryllium Copper | Solder | 50 Ohms | 18 GHz | Gold | Gold | 500 | Polytetrafluoroethylene (PTFE) | |||||

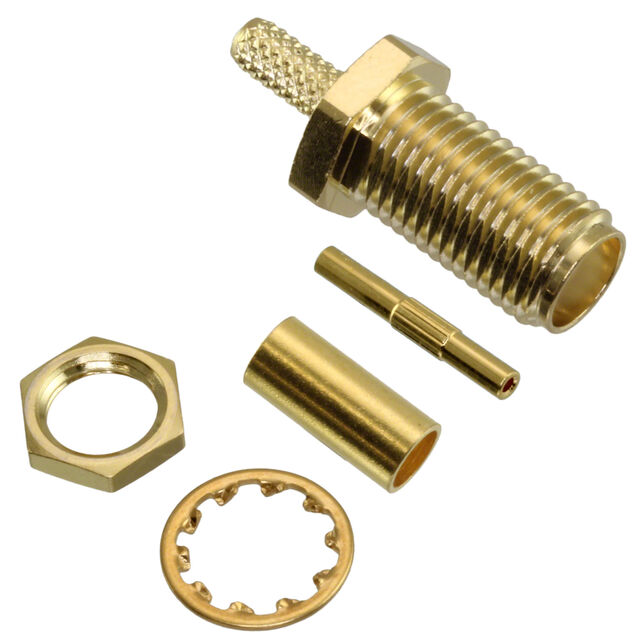

Molex | 500 V | Gold | -65 ░C | 165 °C | SMA | 1 | Solder | Brass | Female Socket Jack | Beryllium Copper | Crimp | 50 Ohms | 18 GHz | Gold | Gold | 500 | Polytetrafluoroethylene (PTFE) | Bulkhead - Front Side Nut | 188 316 RG-174 | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | |||
 Molex | 500 V | Gold | -65 ░C | 165 °C | SMA | Through Hole | 1 | Solder | Brass | Female Socket Receptacle | Beryllium Copper | Solder | 50 Ohms | 18 GHz | Gold | Gold | 500 | Polytetrafluoroethylene (PTFE) | |||||
 Molex | 500 V | Gold | -65 ░C | 165 °C | SMA | 1 | Solder | Brass | Female Socket Jack | Beryllium Copper | Crimp | 50 Ohms | 18 GHz | Gold | Gold | 500 | Polytetrafluoroethylene (PTFE) | Bulkhead - Front Side Nut | 188 316 RG-174 | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | |||
Molex | 500 V | Silver | -65 ░C | 165 °C | SMA | Through Hole Right Angle | 1 | Solder | Brass | Female Socket Jack | Phosphor Bronze | Solder | 50 Ohms | 18 GHz | Tin | Gold | 500 | Polytetrafluoroethylene (PTFE) | |||||
Molex | |||||||||||||||||||||||

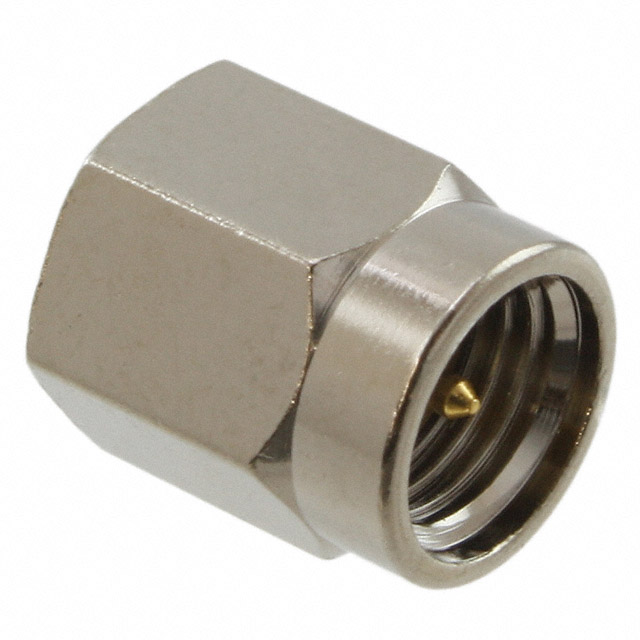

 Molex | SMA | Cap Free Hanging | Brass | Male Pin Plug | 50 Ohms | Nickel | Polytetrafluoroethylene (PTFE) | Brass | Gold | ||||||||||||||

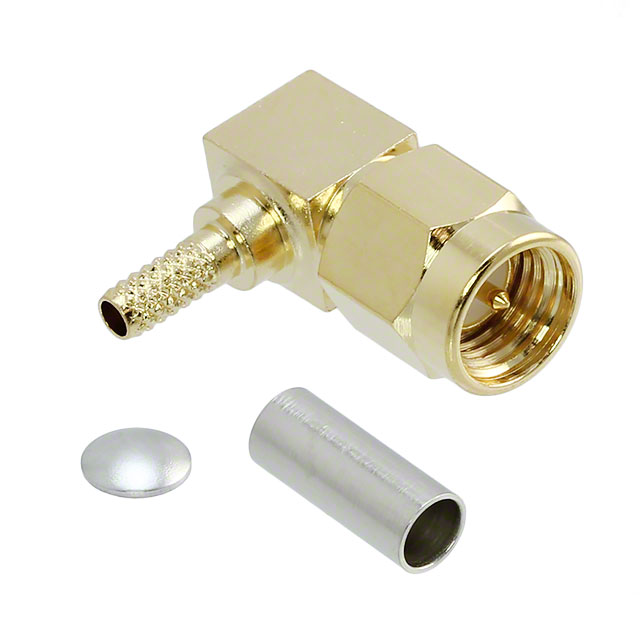

 Molex | 500 V | Gold | -65 ░C | 165 °C | SMA | Free Hanging (In-Line) Right Angle | 1 | Solder | Brass | Male Pin Plug | Brass | Crimp | 50 Ohms | 18 GHz | Gold | Gold | 500 | Polytetrafluoroethylene (PTFE) | 188 316 RG-174 | 1 Connector 1 End Cap 1 Ferrule |
