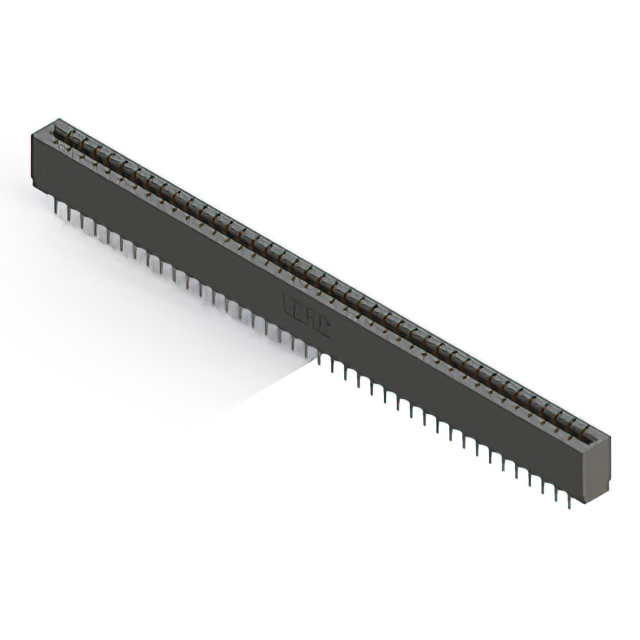

717-080 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 80POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Number of Positions/Bay/Row [custom] | Pitch | Pitch | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Number of Positions | Color | Read Out | Termination | Contact Type | Gender | Mounting Type | Number of Rows [custom] | Card Thickness [Max] | Card Thickness [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | 40 | 3.96 mm | 0.156 in | Gold | 30 Áin | 0.76 Ám | Copper Alloy | 80 | Black | Dual | Press-Fit | Cantilever | Female | Through Hole | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Non Specified - Dual Edge |
 EDAC Inc. | 2 | Polyester Thermoplastic | 40 | 3.96 mm | 0.156 in | Gold | 30 Áin | 0.76 Ám | Copper Alloy | 80 | Black | Dual | Press-Fit Wire Wrap | Cantilever | Female | Through Hole | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Non Specified - Dual Edge |
 EDAC Inc. | 2 | Polyester Thermoplastic | 40 | 3.96 mm | 0.156 in | Gold | 30 Áin | 0.76 Ám | Copper Alloy | 80 | Black | Dual | Press-Fit | Cantilever Make Before Break | Female | Through Hole | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Non Specified - Dual Edge |
 EDAC Inc. | 2 | Polyester Thermoplastic | 40 | 3.96 mm | 0.156 in | Gold | 30 Áin | 0.76 Ám | Copper Alloy | 80 | Black | Dual | Press-Fit | Cantilever | Female | Through Hole | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Non Specified - Dual Edge |
 EDAC Inc. | 2 | Polyester Thermoplastic | 40 | 3.96 mm | 0.156 in | Gold | 30 Áin | 0.76 Ám | Copper Alloy | 80 | Black | Dual | Press-Fit Wire Wrap | Cantilever | Female | Through Hole | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Non Specified - Dual Edge |
