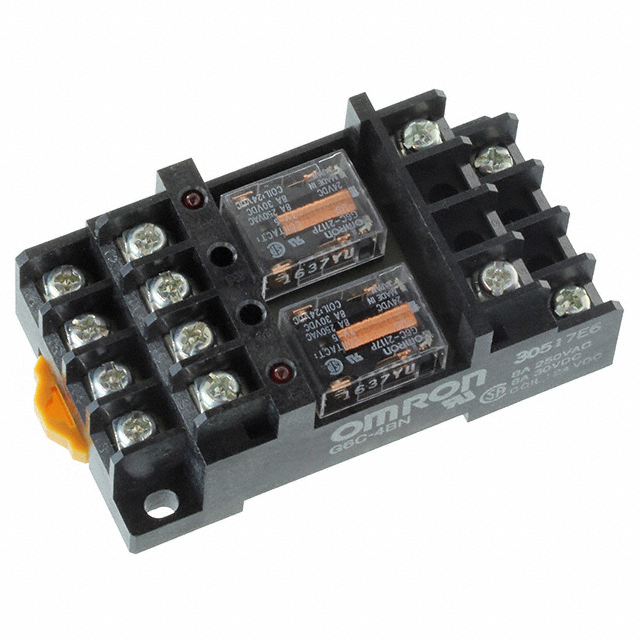

G6C-4BN Series

Catalog

RELAY GEN PURPOSE DPST 8A 24V

Part	Coil Resistance	Coil Current	Switching Voltage	Relay Type	Features	Must Release Voltage	Contact Rating (Current)	Release Time	Contact Form	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Coil Voltage	Must Operate Voltage	Mounting Type	Approval Agency	Coil Type
Omron Electronics Inc-EMC Div G6C-4BND DC24	2.88 kOhms	8.3 mA	125 VDC 380 VAC	General Purpose	Socket Included	2.4 VDC	8 A	15 ms	DPST-NO/NC (1 Form A 1 Form B) x 2	10 ms	55 °C	-25 °C	Screw Terminal	24 VDC	16.8 VDC	DIN Rail	CSA TUV UR VDE	Non Latching
Omron Electronics Inc-EMC Div G6C-4BND DC12	720 Ohms	16.7 mA	125 VDC 380 VAC	General Purpose	Socket Included	1.2 VDC	8 A	15 ms	DPST-NO/NC (1 Form A 1 Form B) x 2	10 ms	55 °C	-25 °C	Screw Terminal	12 VDC	8.4 VDC	DIN Rail	CSA TUV UR VDE	Non Latching
Omron Electronics Inc-EMC Div G6C-4BN-DC24	2.88 kOhms	8.3 mA	125 VDC 380 VAC	General Purpose	Socket Included	2.4 VDC	8 A	10 ms	DPST-NO/NC (1 Form A 1 Form B) x 2	10 ms	55 °C	-25 °C	Screw Terminal	24 VDC	16.8 VDC	DIN Rail	CSA TUV UR VDE	Non Latching
