H3070 Series
Manufacturer: Harwin Inc.
Beta
⌘K

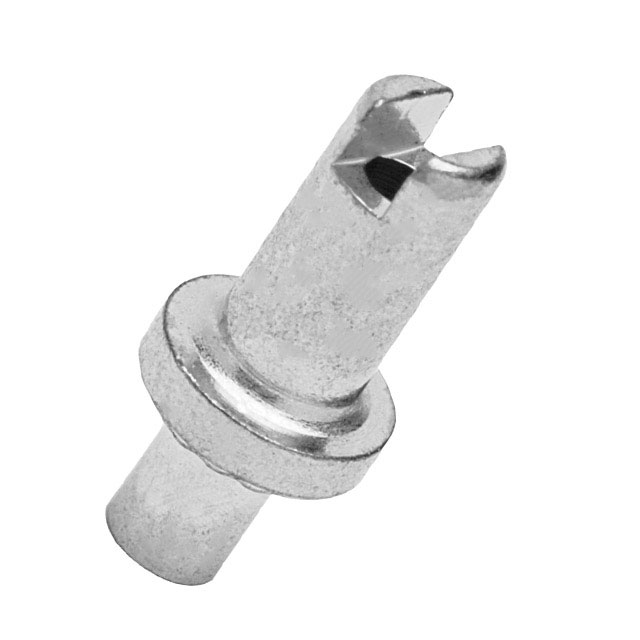

VERTICAL THROUGHBOARD SLOTTED LUG ROHS COMPLIANT: YES
| Part | Contact Material | Contact Finish | Terminal Type | Staking Side OD [Max] | Staking Side OD [Min] | Staking Side OD [Max] | Staking Side OD [Min] | Mounting Type | Insulation | Length - Overall [Min] | Length - Overall [Max] | Length - Overall [Max] | Length - Overall [Min] | Board Thickness | Board Thickness | Flange Diameter [Min] [diameter] | Flange Diameter [Max] [diameter] | Flange Diameter [Min] [diameter] | Flange Diameter [Max] [diameter] | Length - Above Board [Max] | Length - Above Board [Max] | Length - Above Board [Min] | Length - Above Board [Min] | Length - Below Flange [Max] [x] | Length - Below Flange [Min] [x] | Length - Below Flange [Min] [x] | Length - Below Flange [Max] [x] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Mounting Hole Diameter [Max] [diameter] | Number of Turrets | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Brass Alloy | Tin | Fork Hollow Single End | 2.01 mm | 0.076 in | 0.079 in | 1.93 mm | Through Hole | Non-Insulated | 0.34 in | 0.36 in | 9.15 mm | 8.64 mm | 0.063 in | 1.6 mm | 0.153 in | 0.159 in | 3.88 mm | 4.04 mm | 0.261 in | 6.63 mm | 6.25 mm | 0.246 in | 2.51 mm | 2.39 mm | 0.094 " | 0.099 " | 2.03 mm | 0.08 " | 0.083 " | 2.11 mm | Single | Swage |
