HKA00 Series

Catalog

CONN RCPT HSG MALE 11POS INLINE

Part	Insert Material	Type	Shell Material	Fastening Type	Housing Color	Ingress Protection	Connector Type	Shell Size - Insert	Shielding	Contact Shape	Includes	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Mounting Type	Features	Shell Finish	Orientation	Note	Operating Temperature [Min]	Operating Temperature [Max]

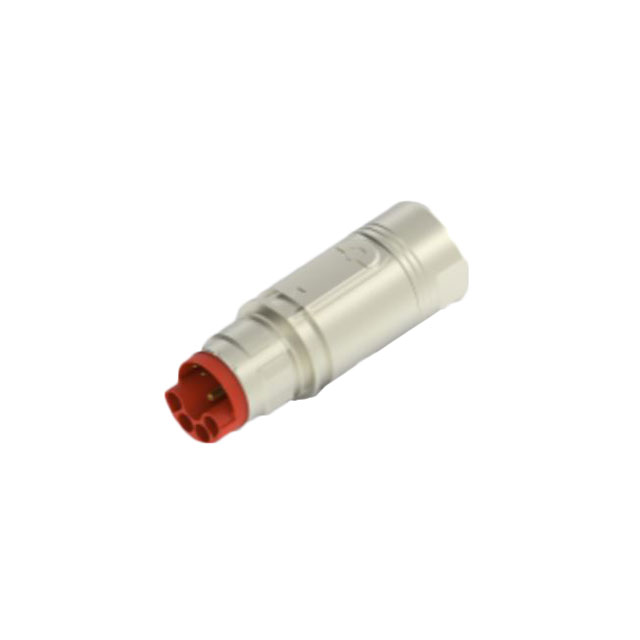

TE Intercontec HKA008N00590100000	Nylon 6/6 Polyamide (PA66)	For Male Pins	Zinc Die Cast	Push-Twist	Silver	IP66 IP67	Receptacle Housing	M23-11	Shielded	Circular	1 Backshell 1 Cable Clamp 1 Connector	UL94 V-0	4	6	11	PE	Free Hanging (In-Line)	Backshell Cable Clamp	Nickel	Keyed	Contacts Not Included	-20 ░C	130 °C

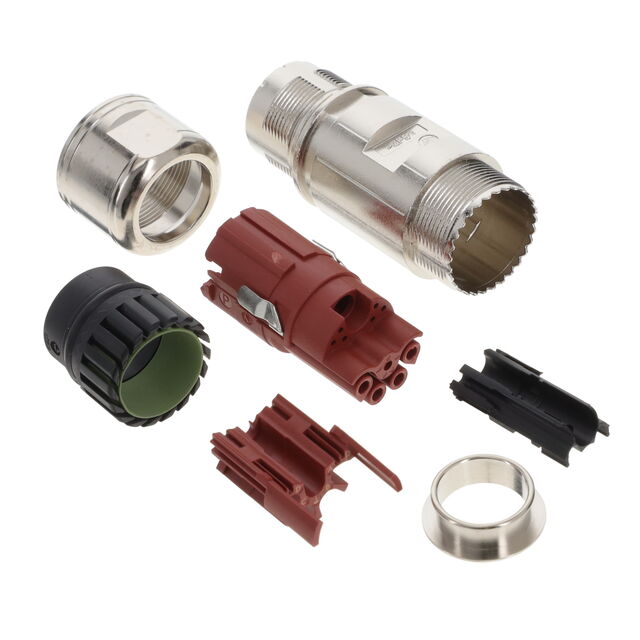

TE Intercontec HKA002N00590100000	Nylon 6/6 Polyamide (PA66)	For Male Pins	Zinc Die Cast	Push-Twist	Silver	IP66 IP67	Receptacle Housing	M23-11	Shielded	Circular	1 Backshell 1 Cable Clamp 1 Connector	UL94 V-0	4	6	11	PE	Free Hanging (In-Line)	Backshell Cable Clamp	Nickel	Keyed	Contacts Not Included	-20 ░C	130 °C
