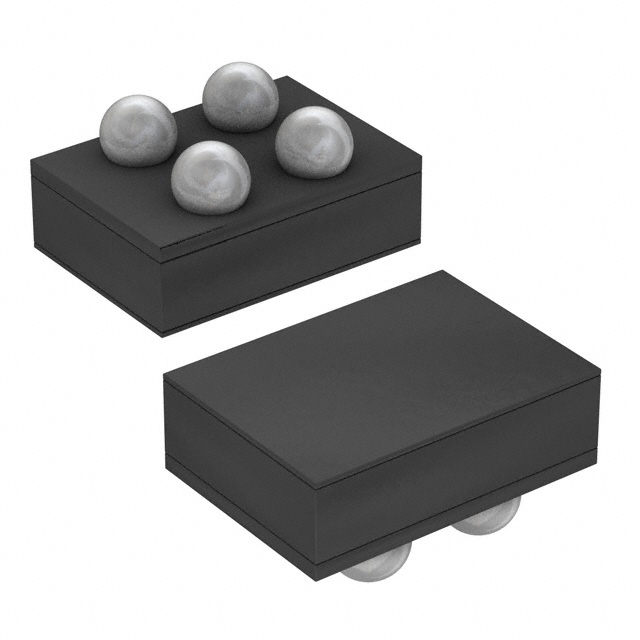

MAX6069 Series

Catalog

1ΜA WLP PRECISION SHUNT VOLTAGE REFERENCE

Part	Current - Cathode	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Noise - 0.1Hz to 10Hz	Tolerance	Reference Type	Current - Output	Temperature Coefficient	Voltage - Output (Min/Fixed)	Supplier Device Package	Mounting Type	Current - Supply
Analog Devices Inc./Maxim Integrated MAX6069BAAWS+T	1 µA	4-WFBGA WLBGA	125 °C	-40 °C	60 µVp-p	0.2 %	Shunt	2 mA	25 ppm/°C	2.048 V	4-WLP (1.16x0.88)	Surface Mount
Analog Devices Inc./Maxim Integrated MAX6069CBAWS+T		4-WFBGA WLBGA	125 °C	-40 °C	60 µVp-p	0.5 %	Shunt		50 ppm/░C	2.5 V	4-WLP (1.16x0.88)	Surface Mount	2 mA
Analog Devices Inc./Maxim Integrated MAX6069CAAWS+T		4-WFBGA WLBGA	125 °C	-40 °C	60 µVp-p	0.2 %	Shunt		25 ppm/°C	2.5 V	4-WLP (1.16x0.88)	Surface Mount	2 mA
Analog Devices Inc./Maxim Integrated MAX6069CAAWS+		4-WFBGA WLBGA	125 °C	-40 °C	60 µVp-p	0.2 %	Shunt		25 ppm/°C	2.5 V	4-WLP (1.16x0.88)	Surface Mount	2 mA
Analog Devices Inc./Maxim Integrated MAX6069BAAWS+	1 µA	4-WFBGA WLBGA	125 °C	-40 °C	60 µVp-p	0.2 %	Shunt	2 mA	25 ppm/°C	2.048 V	4-WLP (1.16x0.88)	Surface Mount
