12V-SB Series
Manufacturer: Inspired LED, LLC
Beta
⌘K
LED ENG COOL WHT 6000K 12M REEL
| Part | Configuration | Height | CCT (K) | Viewing Angle | Color | Lens Type | Luminous Flux (Typical) | Size / Dimension Length per Segment | Size / Dimension Width | Size / Dimension Length | CRI (Color Rendering Index) | Voltage - Forward (Vf) (Typ) | Type | Wavelength |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

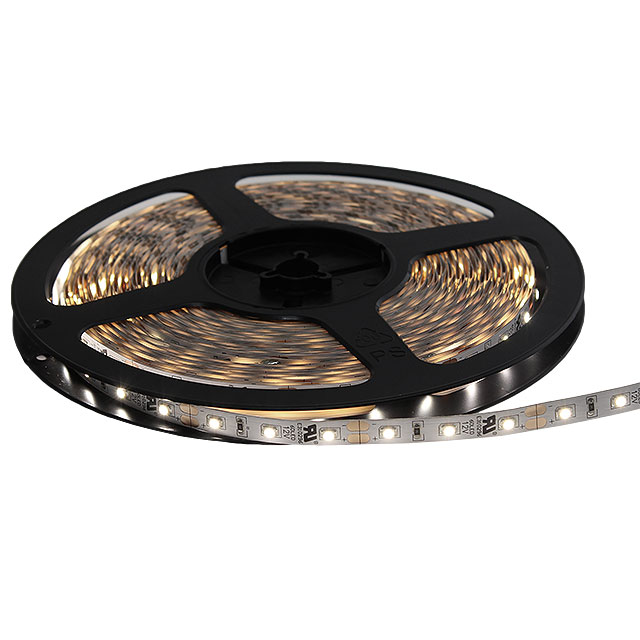

 Inspired LED, LLC | Flexible Linear Light Strip | 1.5 mm | 6000 K | 120 ° | Cool White | Flat | 100 lm | 46.99 mm | 8 mm | 12000 mm | 92 | 12 VAC | LED Engine | |

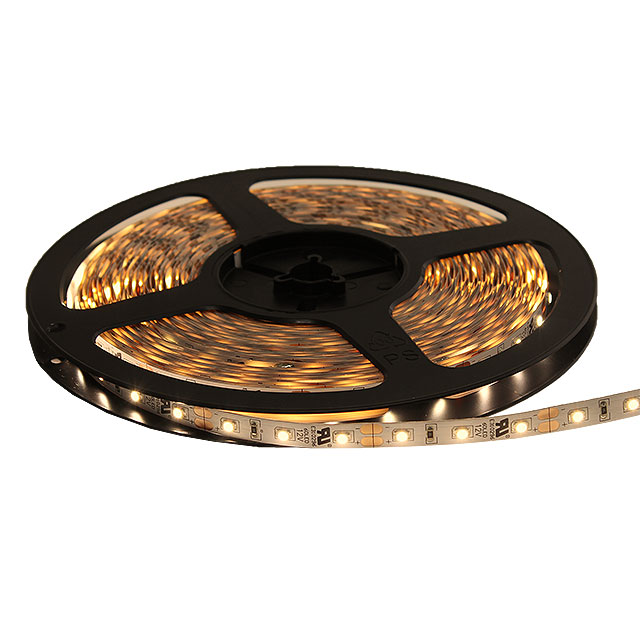

 Inspired LED, LLC | Flexible Linear Light Strip | 1.5 mm | 4200 K | 120 ° | Neutral White | Flat | 95 lm | 46.99 mm | 8 mm | 12000 mm | 94 | 12 VAC | LED Engine | |

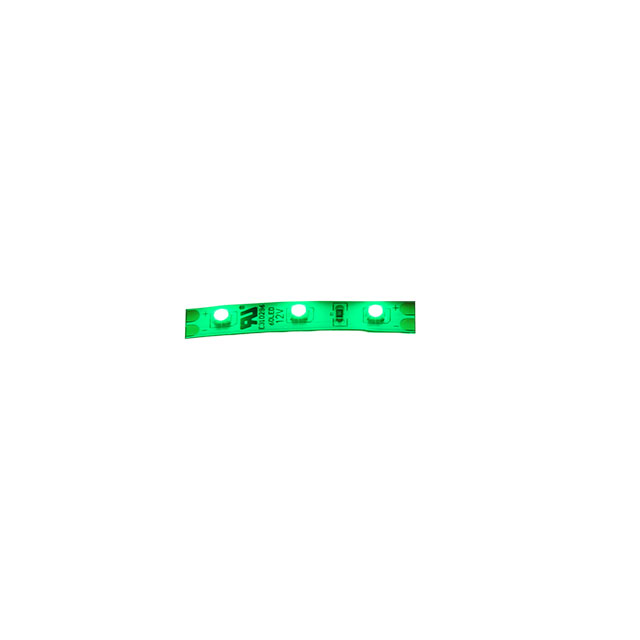

 Inspired LED, LLC | Flexible Linear Light Strip | 1.5 mm | 120 ° | Green | Flat | 46.99 mm | 8 mm | 12000 mm | 12 VAC | LED Engine | 565 nm | |||

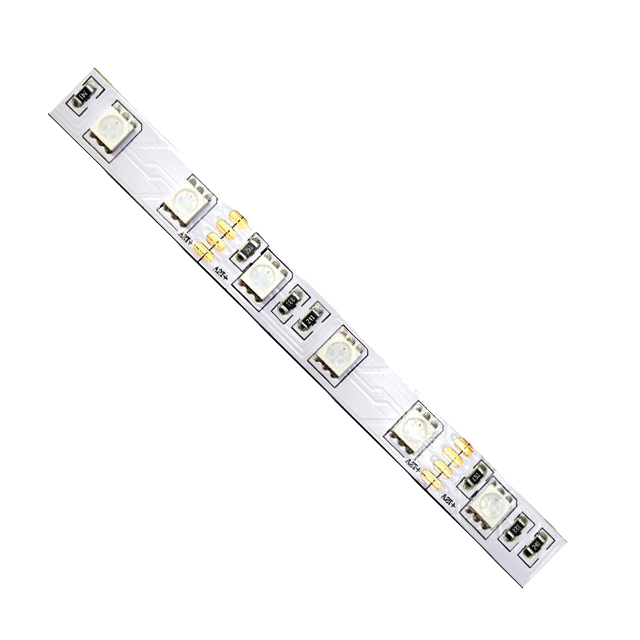

 Inspired LED, LLC | Flexible Linear Light Strip | 2.29 mm | Blue (RGB) Green Red | Flat | 114.3 mm | 10 mm | 12000 mm | 12 VAC | LED Engine |
