- Series

Manufacturer: KINGS

Catalog

CONN BNC JACK R/A 75 OHM PCB

Part	Ingress Protection	Features	Connector Type	Mounting Feature	Number of Ports	Housing Color	Shield Termination	Connector Style	Mounting Type	Frequency - Max	Contact Termination	Impedance	Fastening Type	Center Contact Material	Body Material	Dielectric Material	Center Contact Plating	Mating Cycles	Voltage Rating	Body Finish	Operating Temperature (Min)	Operating Temperature (Max)	Insertion Loss	Color	For Use With/Related Products	Accessory Type	Adapter Type	Conversion Type	Style	Convert From (Adapter End)	Adapter Series	Impedance	Convert To (Adapter End)	Center Gender	Convert To (Adapter End) Gender	Convert To (Adapter End) Type

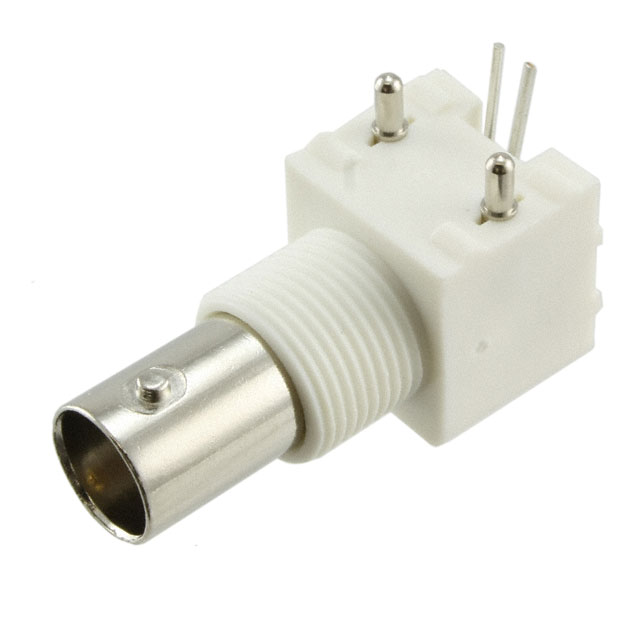

KINGS 364A795	Weatherproof	Board Guide Isolated	Female Socket Jack	Bulkhead Front Side Nut	1	Silver White	Solder	BNC	Panel Mount Right Angle Through Hole	1 GHz	Solder	75 Ohm	Bayonet Lock	Phosphor Bronze	Brass	Polypropylene (PP)	Gold	500 cycles	500 V	Nickel	-40 °C	165 °C	0.2 dB

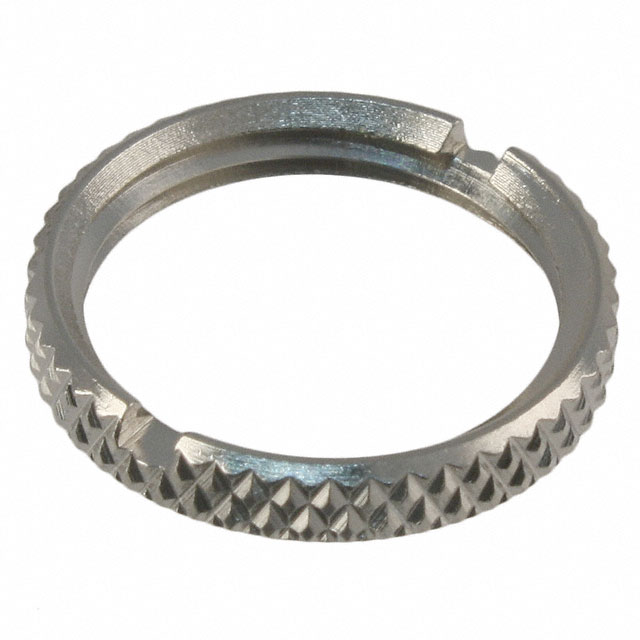

KINGS 361KNT								BNC							Brass					Nickel				Silver	V-Bite® Series	Knurled Nut
KINGS 917A524			Female Socket Jack	Flange	1	Silver	Solder	SMA	Panel Mount	12.5 GHz	Solder Cup	50 Ohm	Threaded	Brass	Brass	Polytetrafluoroethylene (PTFE)	Gold	500 cycles		Nickel	-65 °C	165 °C
KINGS 830A509									Free Hanging (In-Line)	500 MHz			Threaded	Brass	Brass	Polypropylene (PP)				Nickel							Plug to Plug	Same Series	Straight	F Plug Male Pin	F to F	Non-Constant	F Plug Male Pin	Male

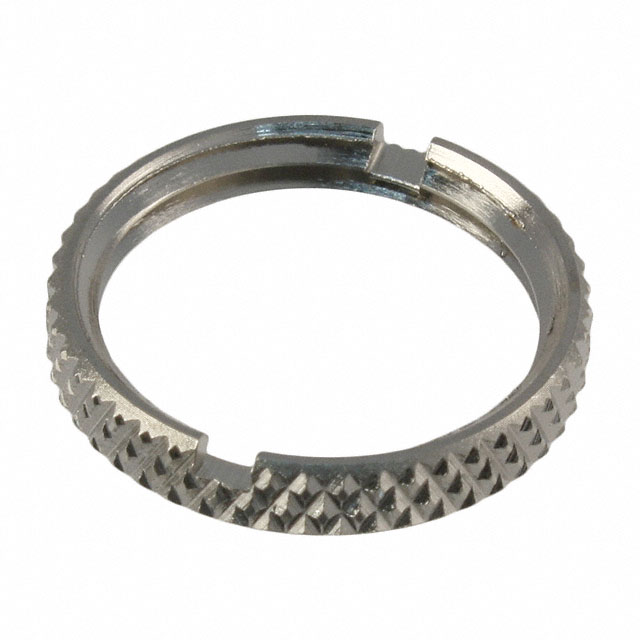

KINGS 364KNT								BNC							Brass					Nickel				Silver	BNC Jacks	Knurled Nut

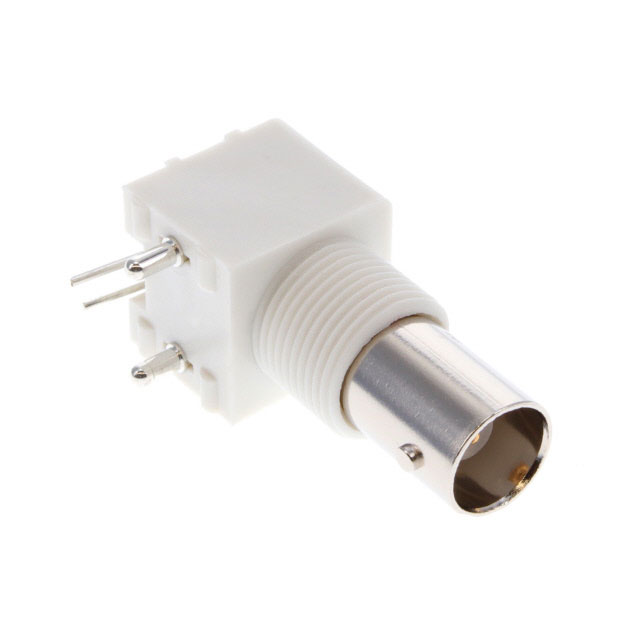

KINGS 364A595	Weatherproof	Board Guide Isolated	Female Socket Jack	Bulkhead Front Side Nut	1	Silver White	Solder	BNC	Panel Mount Right Angle Through Hole	4 GHz	Solder	50 Ohm	Bayonet Lock	Phosphor Bronze	Brass	Polypropylene (PP)	Gold	500 cycles	500 V	Nickel	-40 °C	165 °C	0.2 dB

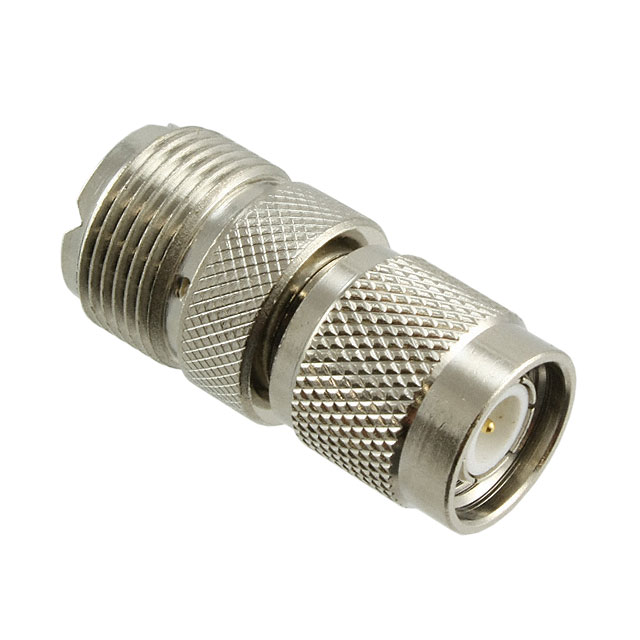

KINGS 5317505									Free Hanging (In-Line)	1 GHz		50 Ohm	Threaded	Brass	Brass		Gold			Nickel	-55 °C	100 °C					Plug to Jack	Between Series	Straight	Male Pin TNC Plug	TNC to UHF			Female Male	Female Socket	UHF Jack

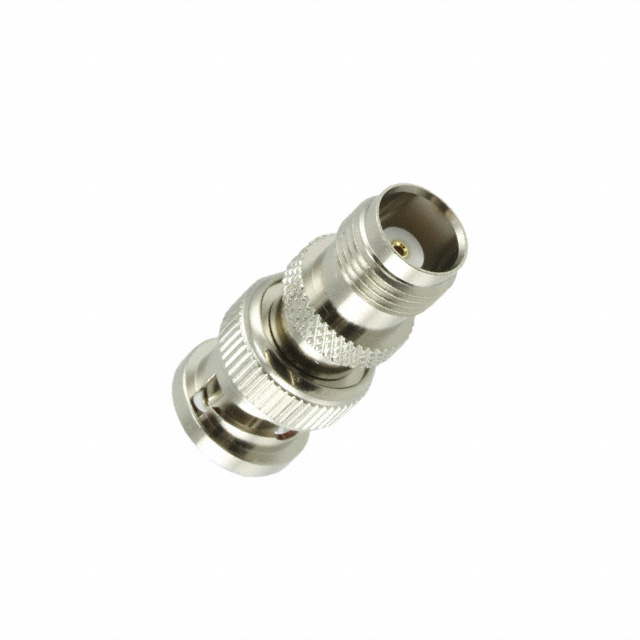

KINGS 3315505									Free Hanging (In-Line)	1 GHz		50 Ohm	Bayonet Lock Threaded	Brass	Brass		Gold			Nickel	-55 °C	100 °C					Plug to Jack	Between Series	Straight	BNC Plug Male Pin	BNC to TNC		Female Socket TNC Jack	Female Male

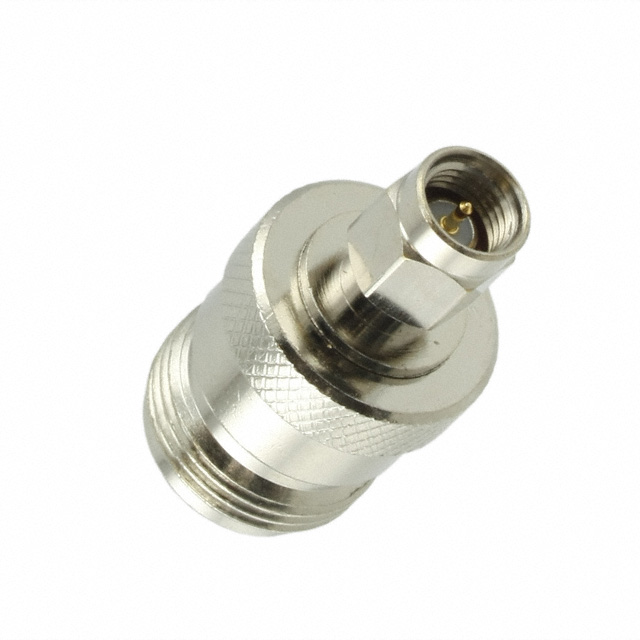

KINGS 9311505									Free Hanging (In-Line)				Threaded	Brass	Brass	Polytetrafluoroethylene (PTFE)	Gold			Nickel							Plug to Jack	Between Series	Straight	Male Pin SMA Plug	SMA to N			Female Male	Female Socket	N Jack
KINGS 651A505									Free Hanging (In-Line) Right Angle	2 GHz			Threaded	Brass Phosphor Bronze	Brass		Gold	500 cycles		Nickel							Plug to Jack	Same Series	Right Angle	Male Pin UHF Mini Plug	Mini Mini to UHF UHF	Non-Constant		Female Male	Female Socket	UHF Mini Jack
